Ballet bar DOUBLE PINA

Overview

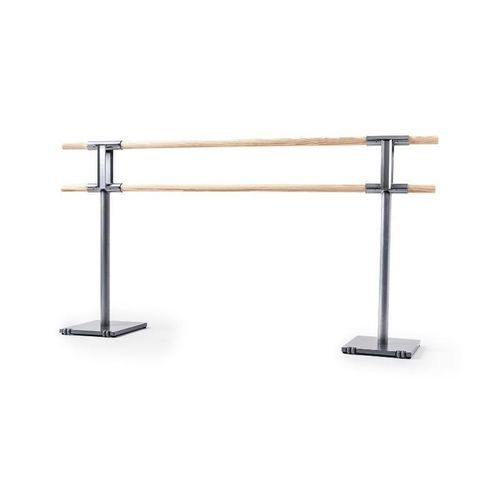

The Pina is a portable professional double ballet barre with uprights for two wooden beams fixed at two heights: 102 cm (upper) and 79.5 cm (lower). The two wooden bars are spaced 19 cm to allow dancers of different sizes to practise simultaneously. The Pina is available with a flat base or a wheeled base for flexible studio layout.

Design and performance
The exclusive Dinamica Ballet double upright design distributes load along the wooden bars. Laboratory elasticity tests at the Polytechnic University of Catalonia demonstrate material resistance to forces up to nearly 400 kg. Uprights clamp the beams without drilling through the wood, ensuring long life and straightforward assembly.

Bases and mobility
Two steel base types are offered: wheeled base with high-density rubber wheels (base weight 20 kg) and flat base (base weight 10 kg). The wheeled base provides stability and easy movement by tilting the barre to 45° to roll. The flat base is lighter and can be lifted without touching the floor. Both include PVC stoppers to protect floors. Example total weights: wheeled base with 2 m bar = 52 kg; flat base with 2 m bar = 36 kg.

Materials and finish
Uprights and bases are made of high-quality steel with a silver epoxy finish that resists scratches. Wooden bars are Southern yellow pine from sustainable forests, sanded and left unvarnished to provide a pleasant touch, firm grip and controlled flexibility for advanced exercises.

Lengths and supports

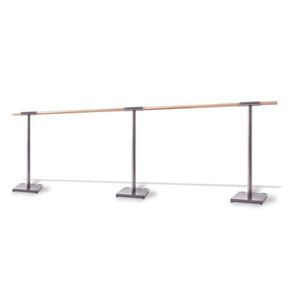

The Pina is available with wooden bars in 100 cm, 150 cm, 200 cm or 300 cm lengths. Larger configurations (4 m and 5 m) with three supports are also offered so several people can train on the same barre; these are available with wheeled or flat bases.

Assembly and handling
The Pina is supplied in six elements: 2 bases, 2 uprights and 2 wooden bars. Assembly: mount uprights on bases, place wooden beams on uprights and clamp by tightening the screws on the upright plates until beams are firmly held. When moving the flat-base version lift to avoid dragging; when moving the wheeled version tilt to 45° and roll, ensuring both columns move simultaneously to avoid tension on the wooden bar.

Technical specifications

• Heights of wooden bars: 102 cm (upper) and 79.5 cm (lower).
• Distance between the two wooden bars: 19 cm.
• Wooden beams: 2 units | Ø 40 mm | available lengths: 100 cm, 150 cm, 200 cm, 300 cm | Southern yellow pine from sustainable forests.
• Bases: hammered gray steel feet; steel column and upright in silver colour with epoxy finish; PVC stoppers to protect floors.
• Base weight: wheeled base = 20 kg; flat base = 10 kg.
• Example total weights (with 2 m bar): wheeled base = 52 kg; flat base = 36 kg.
• Technical weights by length and base type:
  • L 150 cm with wheels: 50.5 kg
  • L 200 cm with wheels: 51.5 kg
  • L 300 cm with wheels: 52.0 kg
  • L 150 cm without wheels: 31.5 kg
  • L 200 cm without wheels: 32.0 kg
  • L 300 cm without wheels: 32.4 kg
• SKU codes (product variants):
  • 150 cm with wheels: 30590123
  • 200 cm with wheels: 30590122
  • 300 cm with wheels: 30590121
  • 150 cm without wheels: 30590623
  • 200 cm without wheels: 30590622
  • 300 cm without wheels: 30590621
• Materials tested to resist forces up to nearly 400 kg (laboratory elasticity tests).
• Screws and tools supplied: DIN 7991 M-12 x 50 mm x2; DIN 7991 M-6 × 14 mm A2 x16; Allen 8 mm x1; Allen 4 mm x1.
