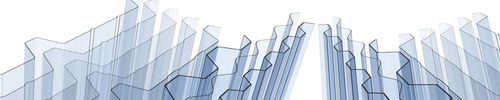

Corrugated polycarbonate panel TegoLux

for roofwith UV protectiontranslucent

Corrugated solid overlapping sheets with UV protection on the external side, which allow for maximum illumination of indoor environments with natural light. A range that is continuously updated to meet the needs of the construction sector; in fact, these products have greca square wave and circular wave corrugated profiles compatible with the most used insulated roofing panels. Thanks to the possibility of lateral overlapping, tegoLUX® panels are suitable for the creation of greca square wave corrugated continuous roofing, intra-pitch skylights and ridge-eaves skylights for greenhouses/depots/industrial buildings/verandas/garages and countless other DIY needs. To improve the technical performance of the skylights, a false ceiling is often combined with our Velario® multiwall sheets. Recently, for some profiles, the TegoExtra® version was created, which has a thickness of 1.5mm or 3mm to guarantee maximum resistance to hail and accidental impacts. Features MIN slope( Continuous Roofing) - 7% MIN Slope (skylight) - 5% light transmission - Crystal >90% UV protection - Co-extrusion on external side thermal expansion - 0,0065 mm/m°C Operating temperature - -40 ÷ 120 oC reaction to fire EN 13501-1 EuroClass B-s1 - EuroClass B-s1,d0
