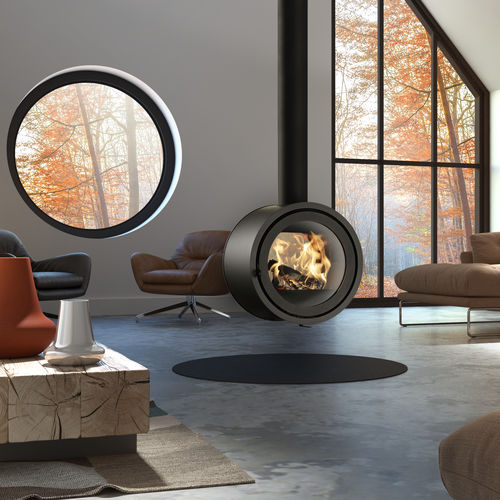

Designed with style, efficiency and ease of use and meticulously crafted. That is the Dik Geurts Odin.
Its distinctive circular design not only makes it a real eye catcher, but its shape also generates fabulous flame patterns. Flames which are easy to control, with just one unique air slider that is exclusive to Dik Geurts.
Specifications
Brand - Dik Geurts
Series - Odin
EcoDesign Ready -
Fire view - Tunnel
Shape - Round
Combustion system - Combustion air from living area
Suitable for passive houses -
Glass window - Standard glass
Door type - Hinged door
Control - Manual control
S-Thermatik NEO -
Colours - Dark anthracite
Interior - Vermiculite dark anthracite
Max. log length (cm) - 33
Efficiency (%) - 75.0
CO emission (%-13% O2) - 0.07
Particulate Matter (mg/Nm3-13% O2) - 40
OGC/CxHy (mg/Nm3-13% O2) - 77
NOx emission (mg/Nm3-13% O2) - 127
Fire view width (mm) - 424
Fire view height (mm) - 424
Weight (kg) - 100
Flue - Top
Flue Ø (mm) - 150
External air connection - Base
Convection connection -
230V necessary -
Approvals - EN13240, Flamme Verte, BlmSchV, EcoDesign
