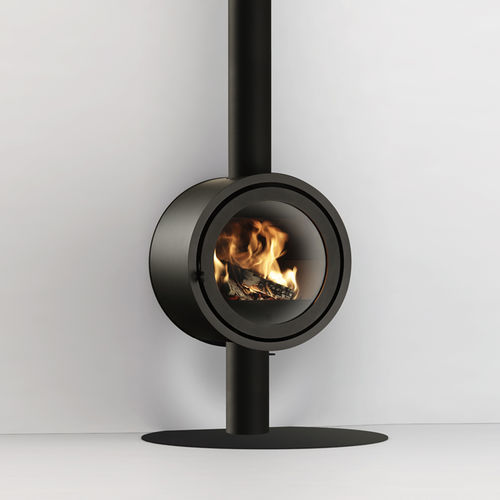

Wood heating stove Dik Geurts - Odin Front, Wall

4 kW5 kW...10 kWhanging

Beautifully simple One single sturdily constructed air slider with three settings for the entire operation of your stove. This is typically Dik Geurts. The primary ventilation is for igniting the fire, the secondary ventilation is for burning waste gases and the ventilated glass creates a window that always stay clean. Specifications Brand - Dik Geurts Series - Odin EcoDesign Ready - Fire view - Front Combustion system - Combustion air from living area Suitable for passive houses - Glass window - Standard glass Door type - Hinged door Control - Manual control S-Thermatik NEO - Colours - Dark anthracite Interior - Vermiculite dark anthracite Max. log length (cm) - 33 Efficiency (%) - 75.2 CO emission (%-13% O2) - 0.05 Particulate Matter (mg/Nm3-13% O2) - 31 OGC/CxHy (mg/Nm3-13% O2) - 67 NOx emission (mg/Nm3-13% O2) - 140 Fire view width (mm) - 424 Fire view height (mm) - 424 Weight (kg) - 100 Flue - Top Flue Ø (mm) - 150 External air connection - Base Convection connection - 230V necessary - Approvals - EN13240, Flamme Verte, BlmSchV, Defra, EcoDesign
