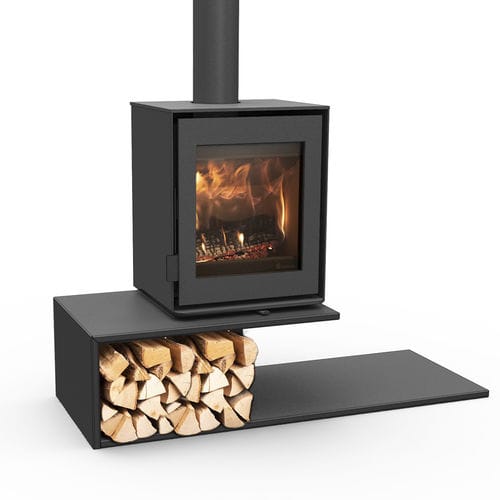

With the Modivar 5, Floating Plateau, you can enjoy a beautiful fire view thanks to the high glass window. The wood-burning stove stands on a Floating Plateau for a modern and spacious look and there is also room for the storage of logs. The Modivar 5 is also available with a Straight Plateau or wood compartment.
Brand - Dik Geurts
Series - Modivar
EcoDesign Ready -
Model - Freestanding
Fire view - Front
Shape - Vertical
Fuel - Wood
Combustion system - Combustion air from outside, Combustion air from living area
Suitable for passive houses -
Glass window - Standard glass
Door type - Hinged door
Control - Manual control
S-Thermatik NEO -
Colours - Dark anthracite
Interior - Vermiculite natural
Max. log length (cm) - 35
Efficiency (%) - 82.0
CO emission (%-13% O2) - 0.09
Particulate Matter (mg/Nm3-13% O2) - 8
OGC/CxHy (mg/Nm3-13% O2) - 62
NOx emission (mg/Nm3-13% O2) - 78
Fire view width (mm) - 310
Fire view height (mm) - 355
Weight (kg) - 140
Flue - Top, Rear
Flue Ø (mm) - 125/130
External air connection - Base
Convection connection -
230V necessary -
Approvals - EN13240, Flamme Verte, BlmSchV, Defra, EcoDesign
