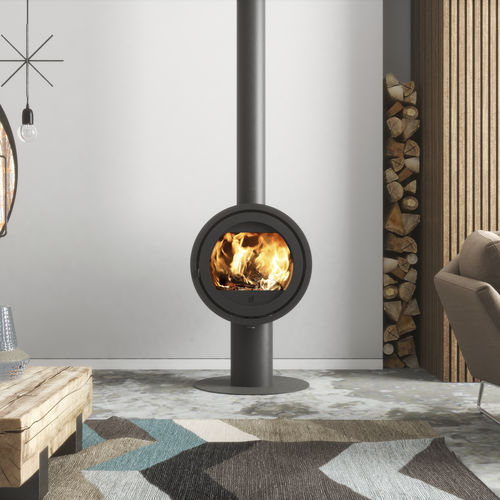

Wood heating stove Dik Geurts - Odin Front, Base

8 kW4 kWwith legs

Unique eyecatcher with great flaming image The Odin Front, Base is a fireplace with a unique design. Due to its round shape, it is always an eye-catcher and its shape also provides a great flaming image. The 'Base' is a newly developed base that provides the fireplace with extra placement possibilities. For any extra supply air, an outside air connection can be placed inside this Base. Specifications Brand - Dik Geurts Series - Odin EcoDesign Ready - Fire view - Front Combustion system - Combustion air from living area Suitable for passive houses - Glass window - Standard glass Door type - Hinged door Control - Manual control S-Thermatik NEO - Colours - Dark anthracite Interior - Vermiculite dark anthracite Max. log length (cm) - 33 Efficiency (%) - 75,2 CO emission (%-13% O2) - 0,05 Particulate Matter (mg/Nm3-13% O2) - 31 OGC/CxHy (mg/Nm3-13% O2) - 67 NOx emission (mg/Nm3-13% O2) - 140 Fire view width (mm) - 424 Fire view height (mm) - 424 Weight (kg) - 100 Flue - Top Flue Ø (mm) - 150 External air connection - Base Convection connection - 230V necessary - Approvals - EN13229, Flamme Verte, BlmSchV, Defra, EcoDesign
