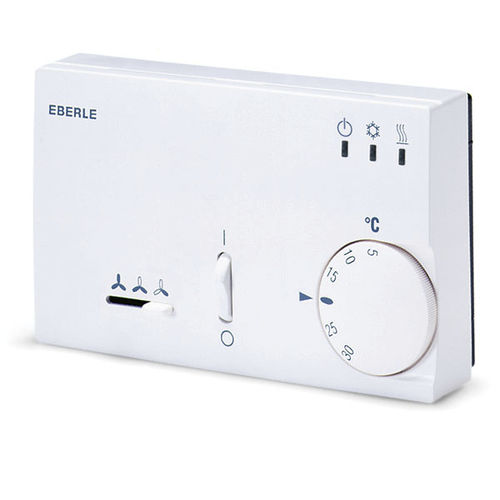

Air conditioner control KLR-E 52552 4P

Climate controller 5-30°C, AC 230V, 1 changeover contact, adjustable neutral zone, H/K 10A, fan S/M/L 6A, On/Off Contact - Heating and cooling (change over) Voltage - AC 230 V 50 Hz Switching current - AC 6A (…*) Colour - Active white (similar to RAL 9016) Temperature range - 5 … 30°C Measurements - 127 x 75 x 28,6 mm Climate controller, electronic for wall mounting. Suitable for controlling 2-pipe systems only in conjunction with a pipe contact controller (e.g. RAR), 4-pipe systems, cooling only or split units with electric heating. Adjustable neutral/dead zone from 0.5 - 8.5 K. On/off switch, fast/medium/slow fan switch. Control lamps: mains/heating/cooling. Operation also possible with remote sensor (extendable up to 50m). Range restriction in the setting knob as a cost brake. Surface mounting or directly on flush-mounted box with vertical mounting holes. " degree of protection IP 30, hysteresis ~ 0.5 K, change-over contact with neutral zone ~ 0.5 ... 8.5 K, 1 switch on/off, 1 switch fan fast/medium/slow, 3 LED control lamps: mains/heating/cooling, operation also possible with remote sensor; (...*) Switching current: AC 6A at cos ϕ = 1; 3 A at cos ϕ = 0.6 (fan). AC 10A at cos ϕ = 1; 4 A at cos ϕ = 0.6 (heating/cooling)".
