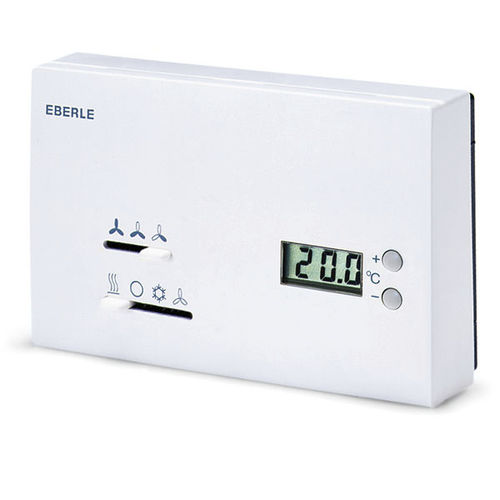

Electronic thermostat KLR-E 52724

manualroomfor heating

Climate controller 15-30°C, with didgital display, AC 230V, 1 changeover contact 3A, H/K, fan S/M/L 6A, On/Off/H/K/L Contact - Heating and cooling (change over) Voltage - AC 230 V 50 Hz Switching current - AC 6A (…*) Temperature range - 5 … 30°C Measurements - 127 x 75 x 28,6 mm Climate controller, electronic for wall mounting. Suitable for controlling 4-pipe systems, heat pumps or ventilation systems. LCD display 5...30 C, adjustable in 0.5 K steps, actual value display range 0...40 C, resolution in 0.1K steps. PID control behaviour. Switch heating/off/cooling/fan, switch fan fast/medium/slow. Operation also possible with remote sensor (extendable up to 50m). Surface mounting or directly on flush-mounted box with vertical mounting holes. degree of protection IP 30, hysteresis ~ 0.5 K, switching current 3(2) A fan current: 6(3) A, 1 switch fan fast/medium/slow, 1 switch heating/off/cooling/fan, PID control behaviour and LCD display , adjustable in 0.5K steps, actual value display range 0...40°C, resolution in 0.1K steps, operation also possible with remote sensor; (...*) Switching current: AC 6A at cos ϕ = 1; 3 A at cos ϕ = 0.6 (fan). AC 3 A at cos ϕ = 1; 2 A at cos ϕ = 0.6 (heating/cooling)
