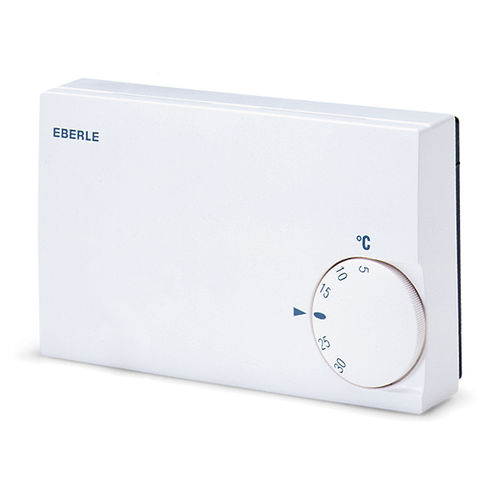

Electronic thermostat KLR-E 52555manualroomfor heating
Add to favorites
Compare this product
Characteristics
- Type
- electronic
- Function
- manual
- Application
- for heating, room
- Installation
- wall-mounted
- Color
- white
Description
Climate controller AC 24V, 5-30°C, 0...10VDC for H/K, load max. 3 mA
Contact -
Heating and cooling
Voltage -
UC 24 V 50/60 Hz (20…30 V)
Switching current -
UC 3 mA
Temperature range -
5 … 30°C
Measurements -
127 x 75 x 28,6 mm
Climate controller, electronic for wall mounting. Suitable for controlling 4-pipe systems. Proportional outputs 0...10VDC for heating and cooling. Proportional band 1.5K fixed. Adjustable neutral/dead zone from 0.5 - 7.5 K. Operation also possible with remote sensor (extendable up to 50m). Range restriction in the setting knob as a cost brake. Surface mounting or directly on flush-mounted box with vertical mounting holes.
degree of protection IP 30, adjustable neutral zone ~ 0.5 ... 7.5 K, operation also possible with remote sensor, load max. 3 mA, proportional outputs 0...10VDC for heating and cooling
