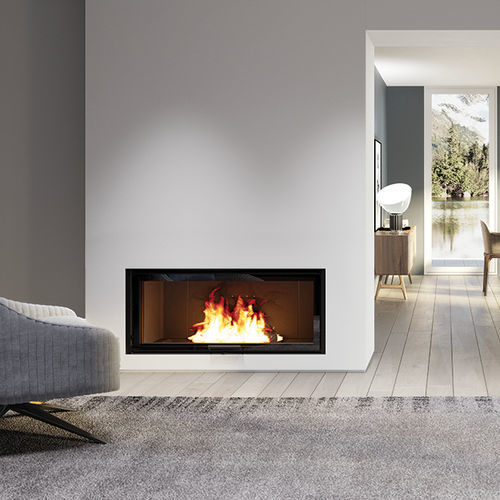

Suitable for a flush-to-floor installation
• Combustion chamber black or white refractory
• smoke outlet ø 18 cm upper, female
• Tilt and ups & downs door opening for the glass cleaning
• Outputs for ducting hot air - n°4
• Combustion setting lever
• Post-combustion system
• Hot air channelling up to 4 adjoining rooms (optional kit)
• Removable handle
• 4 adjustable feet height
• 4 Pivoting wheels easing handling while fitting
• With natural convection (N) , with 3 different choice options for ventilation: fan kit, Air-diffuser and ventilated air vents.
Optional:
• Frame
• Hood mounting template
• Fan kit (side fitting)
• Kit UNO/bis, DUE/bis, TRE/bis Kit QUATTRO/bis, CINQUE/bis
• kit AIR DIFFUSER “Adjacent”
• Ducting vents Split, Bent, Origami, Sharp
Technical data - - min/max
width - cm - 123
depth - cm - 53
height - cm - 135
fireplace mouth measurement (W x D x H) - cm - 94x31x45
useful heat output - kW - 18
efficiency - % - 78
fuel consumption (wood) - kg/h - 5
Ø combustion product outlet - cm - 18
total weight - kg - 380
vol. that can be heated (insul. env. by Law 10/91) - m³ - 470
