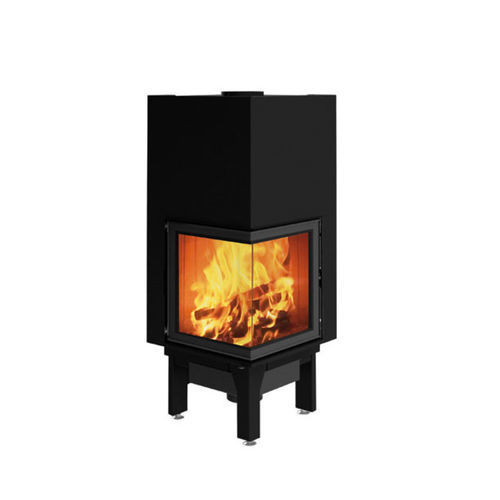

Closed wood hearth WINDO2 50

cornermetalglass

Wood corner fireplace with ecokeram lining for a great view of the fire. • Sliding door, flat angled glass, ecokeram • Glass cleaning system • ecokeram hearth • 2 hot air outlets • Hot air circulation system: - Forced ventilation (V) • Combustion-air supply divided into 3 circuits: primary air, post-combustion air, and turbo air (air from under the grill for quicker start up). OPTIONAL • Forced-ventilation conversion kit available: Air box to insert under the main unit Technical data - - min/max width - cm - 60 depth - cm - 60 height - cm - 148 fireplace mouth measurement (W x D x H) - cm - 40x40x49 useful heat output - kW - 12,4 efficiency - % - 81,8 fuel consumption (wood) - kg/h - 3,3 Ø combustion product outlet - cm - 18 Ø external air intake - cm - 16 total weight - kg - 230 vol. that can be heated (insul. env. by Law 10/91) - m³ - 325
