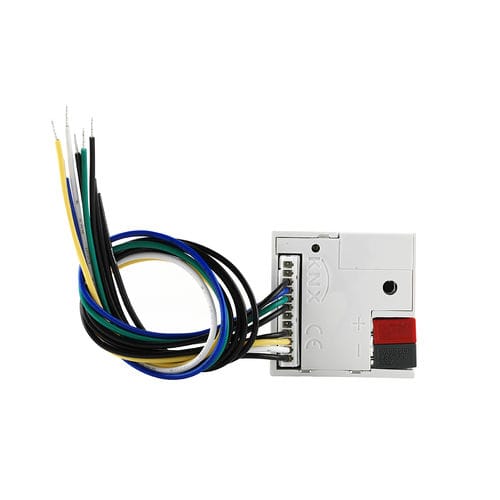

KNX interface module IO22D01KNX

for home automation systems

The device is dedicated to interface dry contacts with 2,4 or 6 input channels, such as sensors, conventional push buttons and 2 or 4 low voltage/current output channels to drive LED signal indicator lamps.These devices are extre- mely compact size (only 34 x 34 x 11 mm) and can also be used in installations where the inwall space available is reduced. The digital inputs can interface sensors, traditional buttons, etc; the 4 low- voltage output channels can drive LEDs for synoptic panels or switches. Outputs can drive low voltage LED; if possible use high-ef ciency LED Eelectron cod. LD00A01ACC (blue color) or LD00A11ACC (white color). There are also 8 blocks of logic functions freely con gurable by ETS (6 blocks available on IO62D01KNX). Device is equip- ped with KNX communication interface.
