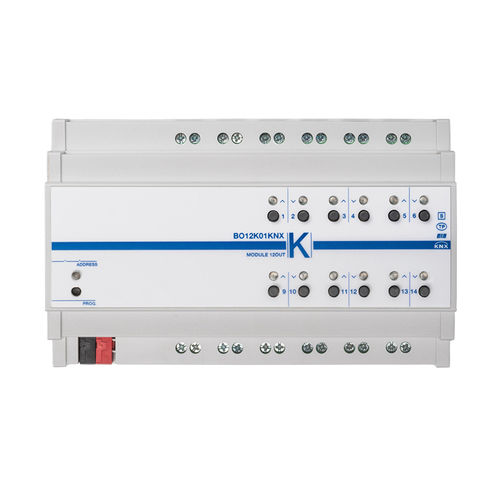

Gateway interface module BO12K01KNX

for home automation systemsKNX

The device BO12K01KNX is a DIN actuator with 16A – 230 V AC relay outputs for controlling loads or shutters and blinds. It has 12 relay outputs and they can be configured in different ways: · Every single output configured independently to control lights or generic loads for a total of 4, 8 or 12 outputs · Outputs configured in pairs to manage shutters, blinds, etc. .. (equipped with mechanical end position) for a total of 2, 4 or 6 channels 8 logic blocks are available to implement simple expressions with logical or threshold operator or complex expressions with algebraic and conditional operators Device is equipped with KNX communication interface
