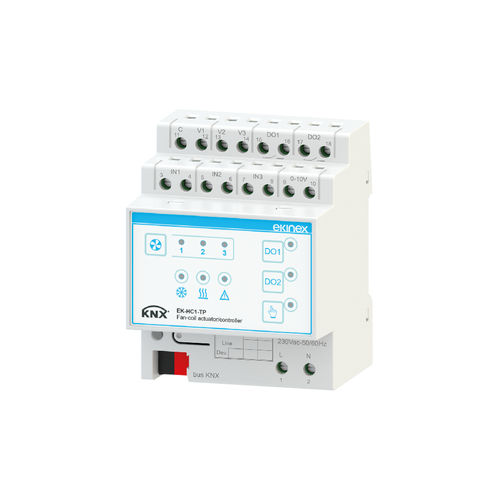

Heating system ventilation controller EK-HC1-TP
for ventilation systemsKNX

heating system ventilation controller
heating system ventilation controller
Add to favorites
Compare this product


Characteristics

Use
for ventilation systems, for heating systems
Options
KNX

Description

KNX bus device with actuator function (in combination with a KNX room temperature controller) or controller / actuator (with acquisition of the temperature value by a KNX sensor or by a sensor connected to an analog input). For installations in 2 or 4-pipe hydraulic distribution systems with ON / OFF control of one or two electrothermal actuators for shut-off valves; control of a 3-speed fan or 0-10 V control of a fan with brushless motor. The outputs not used for controlling a fan coil unit can be configured as output channels to carry out other applications. Mounting in distribution board on EN 60715 rail (4 modular units, each 18 mm). To be used in KNX installations for home and building automation. Power supply from the bus and auxiliary power supply 230 Vac 50/60 Hz Control of 2 or 4-pipe hydraulic distribution systems with shutoff valve ON/OFF (2 SPST relays) Control of a 3-speed fan or 0-10 V control of a fan with brushless motor 3 inputs freely configurable for acquisition of passive temperature sensors (10 kΩ NTC at 25°C) or as potential-free binary inputs The EK-Hx1-TP series includes three devices ekinex® KNX S-mode suitable for temperature control applications. The EK-HC1-TP is used for installations in 2 or 4-pipe hydraulic distribution systems with ON / OFF control of an electrothermal actuator on a shut-off valve; control of a 3-speed fan or 0-10 V control of a fan with brushless motor; this version allows manual control of the outputs through the membrane pushbuttons. The EK-HA1-TP version is used for installations in 2-pipe hydraulic distribution systems with ON / OFF control of an electrothermal actuator on a shut-off valve and a 3- speed fan.
