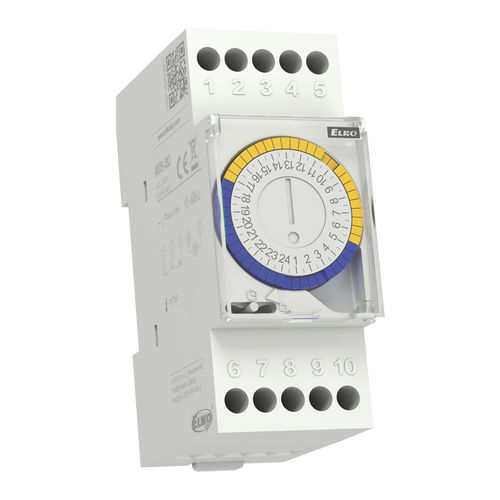

Analog time switch ATS-2DDIN rail
Add to favorites
Compare this product
Characteristics
- Type
- analog
- Other characteristics
- DIN rail
Description
The mechanical time switch is a simple and inexpensive alternative to digital switches for controlling heating, ventilation, cooling, lighting systems or pumps depending on real time.
Daily program.
Selection of operating modes using a switch on the panel:
- switches automatically according to the set program
- permanently closes
- permanently opens
Without power reserve after power off.
Sealable transparent front panel cover.
Supply voltage: AC 230V (50/60 Hz)
Power consumption: 1W (1,5 VA)
Program: daily
Min. operating switching time: 30 min
Number of contacts: 1x changeover (AgNi)
Mounting: DIN rail EN 60715
Protection degree: IP20
Dimensions: 90 x 35 x 60 mm (3,5˝ x 1.4˝ x 2.4˝)
Weight: 117 g (4,1 oz.)
