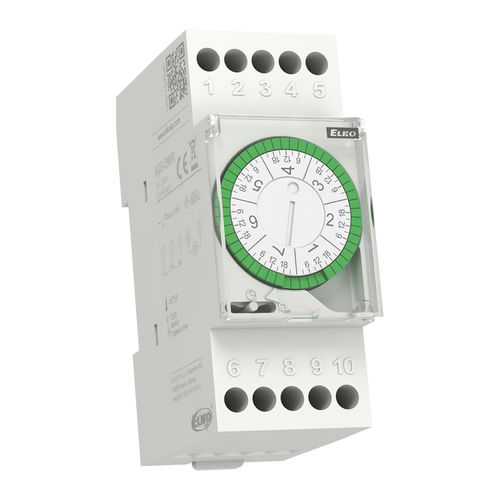

The mechanical time switch is a simple and inexpensive alternative to digital time switches for controlling heating, ventilation, cooling, lighting systems or pumps depending on real time.
Weekly program.
Selection of operating modes using a switch on the panel:
- switches automatically according to the set program
- permanently closes
- permanently opens
Power reserve after power off up to 150 hours after fully charged.
Sealable transparent front panel cover.
Supply voltage: AC 230V (50/60 Hz)
Power consumption (max.): 1W (1,5 VA)
Program: weekly
Min. operating switching time: 3.5 hrs
Power reserve: max. 150 hrs
Number of contacts: 1x changeover (AgNi)
Mounting: DIN rail EN 60715
Protection degree: IP20
Dimensions: 90 x 35 x 60 mm (3,5˝ x 1.4˝ x 2.4˝)
Weight: 117 g (4,1 oz.)
