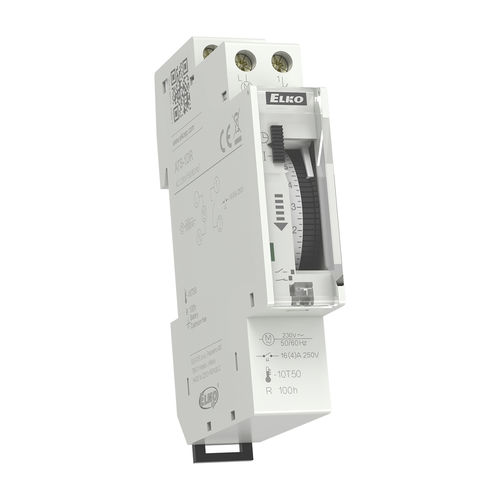

Analog time switch ATS-1DRDIN rail
Add to favorites
Compare this product
Characteristics
- Type
- analog
- Other characteristics
- DIN rail
Description
The mechanical time switch is a simple and inexpensive alternative to digital time switches for controlling heating, ventilation, cooling, lighting systems or pumps depending on real time.
Daily program.
Selection of operating modes using the switch on the panel:
- switches automatically according to the set program
- permanently closes
Power reserve after power off for up to 100 hours after fully charged.
Sealable transparent front panel cover.
Supply voltage: AC 230V (50/60 Hz)
Power consumption (max): 1W (1,5 VA)
Program: daily
Minimum operating switching time: 15 min
Power reserve: max. 100 hrs
Number of contacts 1x NO (AgNi)
Mounting: DIN rail EN 60715
Protection degree: IP20
Dimensions: 90 x 17.5 x 64 mm (3,5˝ x 0,69˝ x 2,5˝)
Weight: 73 g (2,6 oz.)
