Home automation system control keypad CALA KNX M-T

for heating systemsfor lightingwall-mounted

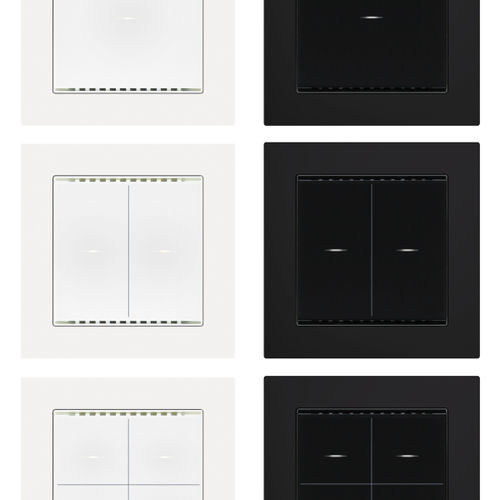

KNX button glass surface Integrated temperature sensor The Cala KNX M-T push button has touch-sensitive buttons, with which functions in the KNX building bus system can be called, such as switch lights and devices, dim, activate drives, send values, scenarios. An LED is integrated into each touch button, the behaviour of which can be adjusted. A temperature sensor is integrated into Cala KNX M-T. An external temperature reading can be received via the bus and processed with its own data to create a total temperature (mixed value). Communication objects can be connected by AND and OR logic gates. The device is supplemented with a frame of the switch series used in the building, and thus fits seamlessly into the interior fittings. Models: N° 70860 Cala M1-T Single Push Button, white N° 70862 Cala M1-T Single Push Button, black N° 70870 Cala M2-T Double Push Button, white N° 70872 Cala M2-T Double Push Button, black N° 70880 Cala M4-T Four-gang Push Button, white N° 70882 Cala M4-T Four-gang Push Button, black Delivery without frame Glass pushbutton with touch surfaces. Single, double or four-gang push button for KNX Cala KNX M1-T functions: 1 Touch bus button, can be configured as switch, selector switch, dimmer, blind (position and slats up/stop OR down/stop), shutters (up/down/stop), awning (in/out/stop), window (closed/open/stop), as 8 or 16-bit encoder or for scenario recall/storage Cala KNX M2-T functions: 2 Touch bus button, can be configured as switch, selector switch, dimmer, for operating drives, as 8 or 16-bit encoder or for scenario recall/storage Area function when touching both push buttons.
