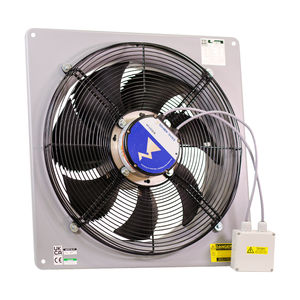

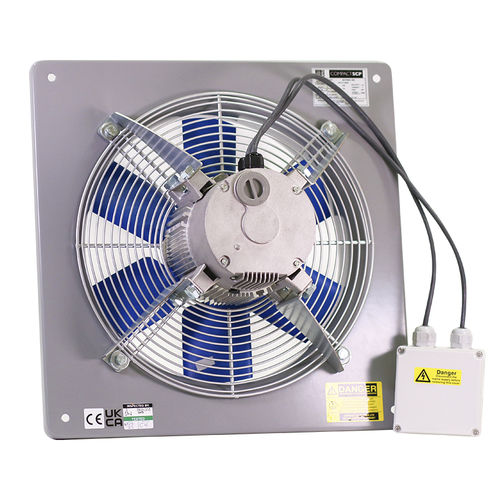

Axial fan Compact SCP

wall-mountindustrialindoor

Plate Mounted Axial Flow Fan •10 standard sizes from 250mm to 800mm •Air volume flow rates up to 5.61 m³/s •Static pressures up to 401 Pa •Highly efficient, lightweight induction motors •Fully speed controllable •Available in AC & EC Overview Featuring our high efficiency Series 1 impeller, the Compact SCP makes light work of handling large volumes of air against low resistance. The fan design, construction and finish provide a strong, durable and weatherproofed range. Features and Benefits Intelligent Design Compact low profile design suitable for vertical or horizontal mounting. Easy Installation A fitted IP55 terminal box allows the fan to be positioned conveniently to incoming electrical inputs. Designed For Efficiency Impellers are adjustable pitch aerofoil with blades made from high quality GRP. Combined with increased blade chord and twist, we have achieved 7% higher efficiency, reducing overall energy consumption. Increased blade root reduces stress levels making our range of impellers ideal for arduous fan applications. Corrosion Resistance Specially treated against corrosion, powder coated with polyester epoxy paint. Controllability A range of transformer voltage controllers and inverters are available for AC units. IE5 EC fans can be directly connected via DC voltage 2 to 10V, DC current 4 to 20mA, Frequency 10 to 95% or a potentiometer. Both AC with Inverter and EC provide significant cost-savings through lower energy consumption. Warranty Each SCP has a 12 month warranty.
