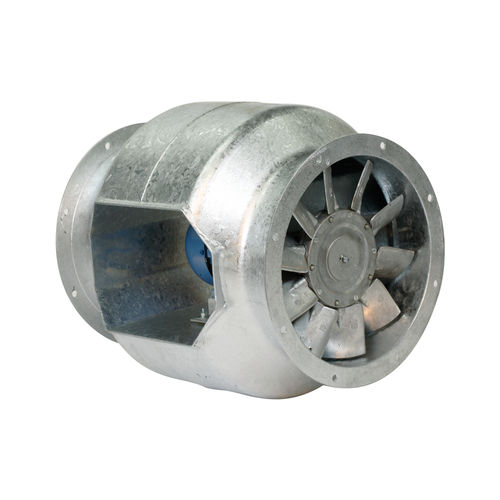

Axial fan Biflow SB

ductindustrialindoor

Conical or Cylindrical Bifurcated Axial Fan • 5 standard sizes from 250mm to 630mm • Air volume flow rates up to 4.501 m%s • Static pressures up to 608 Pa • Suitable for operating temperatures up to +200°C • Available in AC Overview A range of bifurcated axial fans, specially developed with motor out of the airstream to handle more hostile air movement applications. Features and Benefits High Temperature Class H motors out of the airstream are not effected by contaminates in the ventilated air. Suitable for elevated temperatures of up to 200°C. Efficient Performance High Efficiency Adjustable pitch aerofoil impellers are provided with blades made from high quality pressure die cast aluminium. Corrosion resistance The fan casing is hot dip galvanised after fabrication to BS 729, offering enhanced corrosion resistance. Weather Resistance The fans are suitable for external mounting as standard. Long Life Motor is isolated from hot and contaminated air, prolonging the life of the fan. Warranty Each SB has a 12 month warranty.
