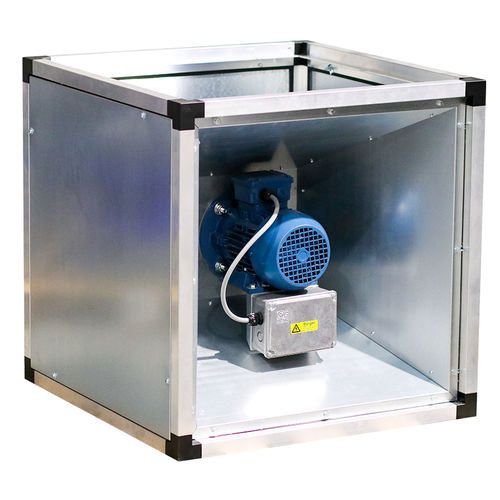

Centrifugal fan Qube SQUHT

recessedindustrialindoor

High Temperature Centrifugal Box Fan • Box sizes of 500, 670, 820 and 1020mm • Suitable for 120°C Ambient Airstream • Interchangeable double skinned panels • Painted Aluminium Corners • 90° Outlet | • Available in AC and EC Overview A high temperature multi-discharge insulated double skinned fan unit incorporating a high performance backward curved impeller. Available with energy efficient IE6 EC motor or AC motor to (EU) 2019/1781. Features and Benefits Intelligent Design Designed to maximise performance and reduce the use of energy having moveable panels allowing the outlet position to be altered on site to suit installation. Low Noise Unit is constructed from double insulated panels filled with 25mm fibreglass acoustic insulation reducing radiated noise. Robust Construction Corrosion resistant aluminium frame with painted aluminium corners for strength and durability. Controllability Suitable for speed control and integration into a building management system dependant on model. High Temperature Motor is out of the airstream allowing temperatures up to 120°C. Warranty Each SQU has a 24-month warranty.
