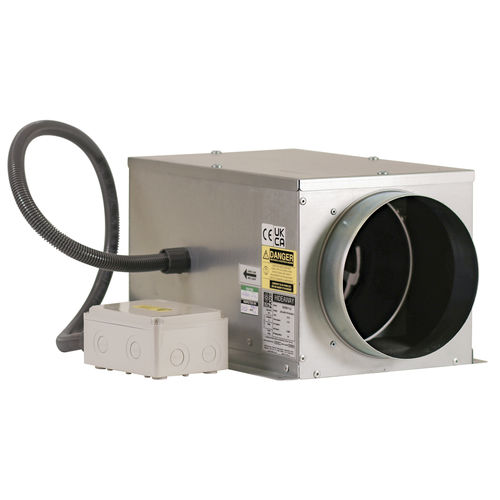

Centrifugal fan Hideaway SH

ceiling mountcommercialindoor

Centrifugal Box Fan • 6 standard sizes from 100mm to 315mm • Air volume flow rates up to 0.832 m3/s • Static pressures up to 451 Pa • Suitable for operating temperatures up to +60°C • Redesigned casing to improve airflow and reduce specific fan powers • Acoustically lined internally to reduce breakout noise levels • Low Specific Fan Power • Suitable for external mounting • Available in EC Overview The Hideaway SH low profile box fan is perfect for applications where space is a premium. The Hideaway incorporates a high efficiency jet design double mixed flow impeller. Features and Benefits Low Noise Each unit is acoustically lined internally with Class O rated (BS 476 Parts 6 and 7) fire resistant acoustic foam lining minimising breakout noise levels. Easy Commissioning Integrated commissioning control allowing single speed selection and also limiting maximum speed if used with an external potentiometer. Space saving Ideal for very shallow ceiling voids or where space is at a premium. Efficient Performance Low power consumption at high performance resulting in Low Specific Fan Powers for Building Regulation Compliance. Controllability EC motors providing precise speed control via potentiometer, 0-10VDC or PWM Circuit. A potentiometer controller is available for manual control. Reduced fan speed can provide significant cost-savings through lower energy consumption in both mechanical energy of motors and also on the conditioning of replacement air. Warranty Each SH has a 12 month warranty.
