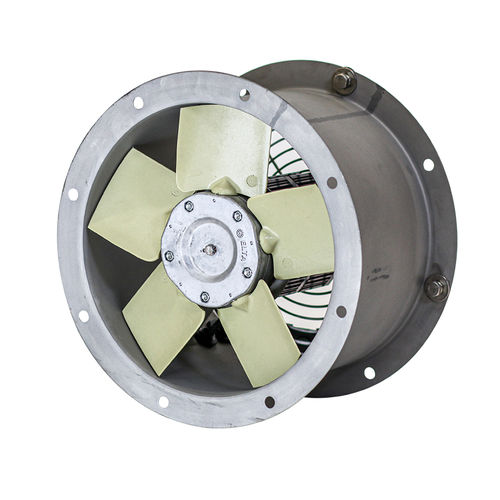

Axial fan EMEC Marine

wall-mountcommercialindoor

EC Axial Fan • 2 standard sizes from 250mm to 315mml • Air volume flow rates up to 0.658 m3/s • Static pressures up to 683 Pa • Suitable for operating temperatures up to 40°C • Brushless design for maintenance-free operation • 24V DC Power Supply • 1P56 Protection Class Motor Overview The EMEC Marine axial fan has been designed specifically for use in marine fan applications where maximum performance and compact size are critical, utilising brushless DC technology for low maintenance, low energy consumption and controllability. Features and Benefits Corrosion Resistance The all-metal fan casing provides a long lasting and robust construction with a focus on corrosion resistance. The fan is constructed from mild steel that is suitably treated to ensure full corrosion protection, with a powder coated polyester epoxy paint finish in either White (RAL 9016), or 316L Stainless Steel (pickled & passivated finish), dependant on model. This fan is engineered to withstand harsh marine conditions, ensuring continuous and reliable operation even in the most challenging environments. Control & Energy Saving Fans can be directly connected via DC voltage 2 to 10V, or a potentiometer, providing significant cost-savings through lower energy consumption. Intelligent Design Maintenance-free operation with outstanding reliability, Brushless fans offer a spark-free operation that requires low maintenance. The precision-built DC motor is half the size of a similar AC powered motor, saving weight and improving fan blade efficiency. Warranty Each EMEC has a 12 month warranty.
