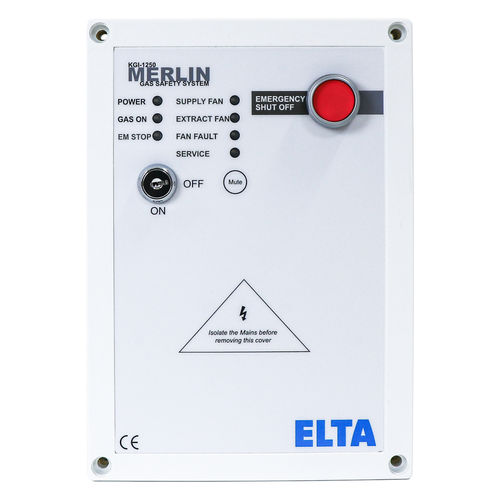

Ventilation system control panel KGI-1250

wall-mountedcommercial

• Compliance with BS6173 for commercial kitchens • Fan Interlock by Internal Current Monitors • Emergency Shut off • BMS Terminals for Alarm/Gas On/off • Clear LED display for system indications • Audible Alarm • Will Interlock with up to 2 fans with current between 0.1A and 20.0A Overview The Elta KGI-1250 ventilation interlock system, with built in current monitoring, is designed specifically for use in commercial kitchens to meet BS6173. This panel is to be used when the kitchen appliances have flame failure devices, therefore Gas proving is not a requirement. It acts as an interlock between the ventilation system and the gas solenoid valve. The system has built in current monitors to interlock with up to 2 fans. Features and Benefits Gas & Fan Interlocking The KGI-1250 provides interlocking of up to two fans and the gas solenoid valve Integral Current Monitoring Adjustable current monitors are provided for up to two fans between 0.1A and 20.0A, these provide an improved method of fan monitoring over pressure differential switches. Emergency Shut Off The unit is fitted with an emergency shut off cutting off the gas supply when activated. BMS Connections Connections are available to integrate with a Building Management System to make or break a circuit dependent on whether gas is on or off, (valve open or valve closed). This will tell the BMS whether the kitchen has use of the gas supply. Fire Alarm Integration The unit can be integrated with a fire alarm to close the gas supply automatically in the event of a signal from the fire alarm panel.
