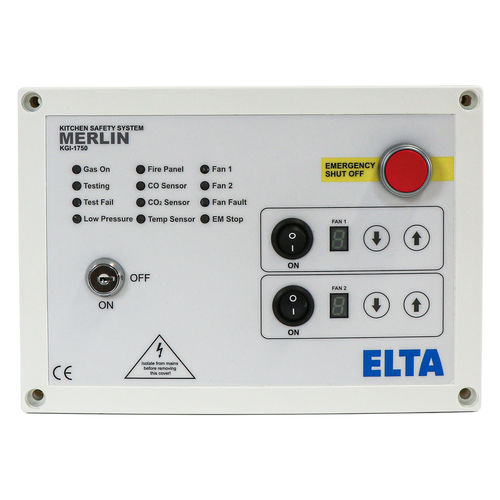

Ventilation system control panel KGI-1750

wall-mountedcommercial

• Compliance with BS6173 for commercial kitchens • Gas proving for kitchen appliances which are not fitted with flame failure devices • Adjustable fan speed control 0-10V for up to 2 fans • Fan Interlock by external Differential Pressure Switches or Current Monitors (supplied separately) • Emergency Shut off • BMS Terminals for Alarm/Gas On/off • Clear LED display for system indications • Audible Alarm • Will Interlock with up to 2 fans Overview The Elta KGI-1750 System is designed for use in commercial kitchens with solid fuel appliances and charcoal ovens/grills. This panel acts an interlock between the ventilation and the gas solenoid valve and carries out a gas proving test on start up to check for any gas leaks or faulty appliances. The system is compatible with both current monitors and air pressure differential switches to interlock with up to 4 fans with fan on/off and speed control for 2 fans. Features and Benefits Gas & Fan Interlocking The KGI-1750 provides interlocking of up to four fans and the gas solenoid valve Emergency Shut Off The unit is fitted with an emergency shut off cutting off the gas supply when activated. BMS Connections Connections are available to integrate with a Building Management System to make or break a circuit dependent on whether gas is on or off, (valve open or valve closed). This will tell the BMS whether the kitchen has use of the gas supply. Fire Alarm Integration The unit can be integrated with a fire alarm to close the gas supply automatically in the event of a signal from the fire alarm panel.
