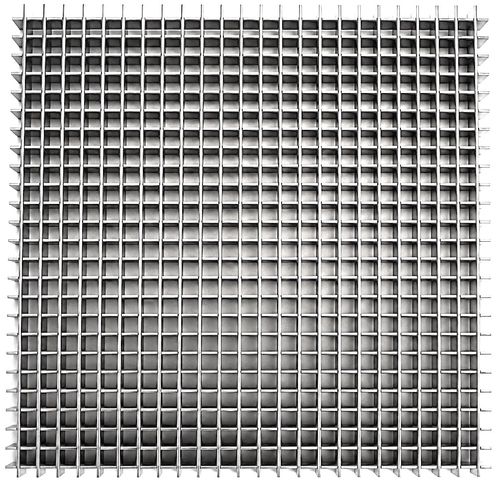

Carbon steel grating

for drain channelsfor stair treadsfor walkways

Press-locked grating differs from electro-welded grating due to its entirely mechanical production process. The joining of the bearing and cross bars occurs exclusively by interlocking through high-pressure pressing, eliminating any thermal alteration. This production process guarantees millimeter precision, perfect mesh alignment, and the complete absence of weld spots: the result is a clean design, making press-locked grating the ideal choice for all architectural applications where visual impact and aesthetics play a fundamental role. In addition to its use in civil construction, press-locked grating is widely used in the industrial sector. For environments where there is a risk of slipping due to liquids, serrated press-locked grating represents the ideal choice thanks to its anti-slip surface, which guarantees greater grip and helps reduce the risk of falls. Fully customizable in terms of mesh size, load capacity, and shaping, press-locked grating can be supplied in raw steel, hot-dip galvanized according to UNI EN ISO 1461 standards, or powder-coated with epoxy paint. The half-moon serration can be applied exclusively to the bearing bar or to both bars. Coating Hot-dip galvanizing compliant with UNI EN ISO 1461 Painting with thermosetting polyester resins over hot-dip galvanized material Full Range Standard Grating: with cross bars smaller in size than the bearing bars Duplex Grating: with bearing and cross bars of the same thickness and height Custom / Cut to size Grating Serrated Grating Heel-proof Grating Ball-proof Grating
