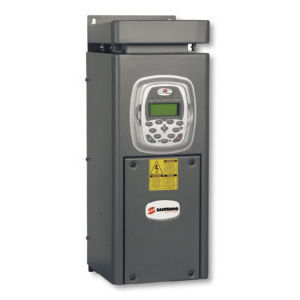

Solar inverter SINUS PENTA

three-phase

– Three-phase asynchronous motors – Three-phase synchronous motors – Sinusoidal current regenerative AFE from 1.3kW a 3000kW The drives of the Sinus PENTA series come with multiple speed control modes and torque control modes for three-phase asynchronous and synchronous motors. Those control modes are user-selectable and ensure optimum performance in terms of accuracy and energy saving for each specific industrial application. – Fully made of steel – Wide range of operating temperature with no derating: -10°C to 55°C – Tropicalized boards (conformal coating) – Overload up to 200% for 2 minutes every 20 minutes or 1 minute every 10 minutes (depending on the drive model) – Peak current up to 240% for 3 seconds – Input frequency: 50-60Hz – Integrated RS485 serial port, MODBUS RTU communications protocol – Wide range of integrated protection features – Output frequency adjustment from 0 to 599Hz (up to 1000Hz on demand) – Degree of protection IP00, IP20, IP54 – Parallel configuration also available – Smart cooling system – Through-panel assembly for the segregation of the servoventilation channels – SINUS PENTA CABINET/BOX in electrical cabinet also available – Compatible with TN-S, TN-C, TN-CS and TT networks Compatibility with IT networks available on demand – Manufactured with top quality materials, totally Made in Italy – Integrated Safe Torque Off (STO) function, Sil3 and EN ISO 13849-1, PL-d – Certification: CE, UL, EAC, RCM – Compatible with the Easy Harmonics software computing harmonic current damping – Compatible with the “REMOTE DRIVE” software for the remote control of the device
