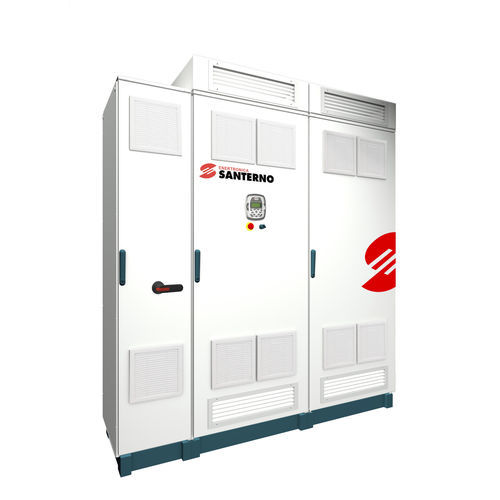

Solar inverter SINUS PENTA XT

three-phase

SINUS PENTA XT extends the range of the SINUS PENTA line while maintaining high configurability to the requirements necessary to satisfy applications on machines and systems. SINUS PENTA XT is the result of an innovative design that allows you to make the most of all the potential of the drives of the SINUS PENTA line. SINUS PENTA XT is available for IP21 and IP54 floor mounting solutions, ready to use with minimal dimensions for easy, optimized, simple and cost-effective integration. The same drive controls both three-phase asynchronous and synchronous permanent magnet motors (with and without speed feedback). Compact design adaptable to customer needs Intuitive and multi-language control panel Easy access connection terminal block and internal cable tray available to the customer Cooling by means of separate ventilation channels Front-channel: dissipation of the control section of the drive Back-channel: dissipation of the power section of the drive Zero clearance (side-by-side mounting) Three front door control modes: 0 = BASIC S = START/STOP F = FULL Three input protective devices: SF = Switch + Fuses 65 kA CB = Circuit Breaker 10 kA BF = Breaker + Fuses 65 kA Harmonic filter on the line input High efficiency filter (dV/dt) on the motor output PT100 motor reading Control and protection of space heaters (both cabinet and motor) Control and protection of motor ventilation Cabinet temperature monitoring Power meter measurements (power, current, voltage, power factor, etc …) RFI output filters Communication protocols boards (fieldbus) Angle sensor boards (encoder, resolver, etc…) I/O expansion boards
