LED track light POLLUX

ovalroundmetal

Pollux New spotlights are compact and efficient track-mounted luminaires designed for precise accent lighting, wallwashing and exhibition use. The concept focuses on essential functions while maximising efficiency through in-house developed drivers and LED modules.

Special features

• Casambi Bluetooth wireless control supported
• Protection class II
• In-house drivers and LED modules — optimized for improved light output (Power‑Boost up to +33%)
• Tool-free interchangeable lenses — up to 6 lens options for varied light distributions
• ERCO Individual colour options in addition to standard black, white and silver

Design and highlights
Two compact construction sizes with optimised thermal management and custom control gear enable high lumen output and visual comfort. Interchangeable optics and an optional rotatable Spherolit oval lens allow precise modelling of the light without tools.

Sizes

• Diameter 66 mm — luminous flux of the luminaire: 216 – 1083 lm (depending on version)
• Diameter 105 mm — luminous flux of the luminaire: 443 – 2017 lm (depending on version)

Applications

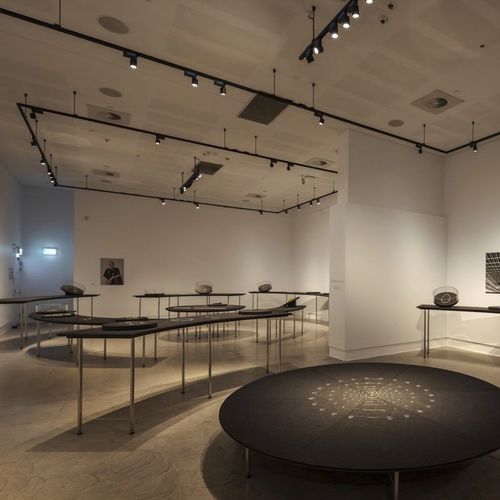

Flexible track spotlights for accent lighting, wallwashing and general floodlighting in showrooms, galleries, museums, retail and similar interior spaces.

Technical data / specifications

• Model family: Pollux New
• Construction sizes: 66 mm and 105 mm
• Connected load (examples): 66 mm → 4.5 W – 15.7 W; 105 mm → 8.2 W – 26 W
• Luminous flux of the luminaire: 216 lm – 2017 lm (depending on size and optics)
• Light source / system output ranges (examples): spotlights 3.1 W – 21.9 W (274 lm – 2715 lm); floodlights/wallwashers 8.1 W – 21.9 W (776 lm – 2715 lm)
• Available light distributions: 7 (very narrow to wide beam, spot, narrow spot, flood, extra wide flood, oval flood, wallwash)
• Interchangeable lenses: up to 6 lens options on the luminaire head, tool-free exchange
• Control: Casambi Bluetooth wireless control supported
• Protection / safety: Safety class II
• Design highlights: in-house LED modules and drivers, optimised thermal management, compact housing, ERCO Individual custom colours available
• Downloads available: product brochure (PDF) and image packages
