LED track light OPTEC

cylindricalcast aluminumtechnopolymer

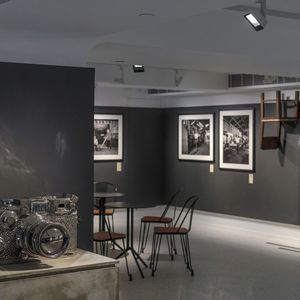

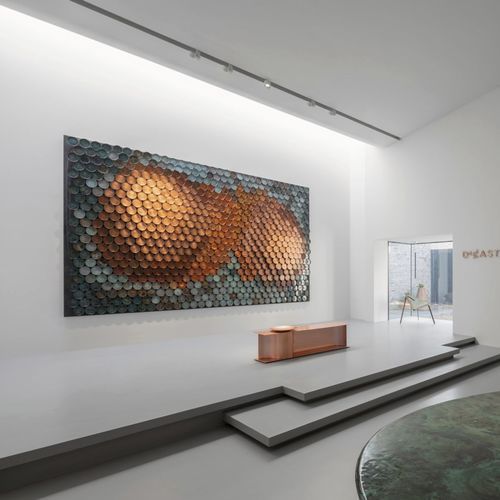

Optec New is a family of track spotlights for retail, gallery and museum accent lighting, engineered for an approximate 75,000-hour service life and designed for upgradeability through interchangeable optics and accessories. Key features Lifecycle target: designed and tested for approx. 75,000 hours (≈20 years at ~10 h/day under standard use). High-efficiency ERCO lens system: projects light precisely with minimal spill, increasing lux per watt on the target surface. Tunable White options available to support Human Centric Lighting concepts (continuous colour-temperature adjustment). Interchangeable optics and accessories for flexibility and future upgrades. Adapters on request for other track systems (examples: Eutrac, Global). Cost-effective entry-level option within ERCO’s product range. Optics & light distributions Spherolit lenses (optical polymer): narrow spot, spot, flood, wide flood, extra wide flood, oval flood, oval wide flood, wallwash. Zoom lenses: zoom spot and zoom oval (continuously focusable). Projection (framing) lenses: narrow framing and wide framing (continuously focusable) for projection. Mechanical & optical components Lens unit: rotatable 360°, polymer, available in white or black; supports spotlights with framing attachment. Cylindrical light head: cast aluminium, powder-coated; available in White (RAL9002), black or silver; tilt up to 270°. Housing: polymer housing in White (RAL9002), black or silver; rotatable 360° on the adapter. Light source & control ERCO LED modules with high-power LEDs: warm white (2700K, 3000K), neutral white (3500K, 4000K) or Tunable White (2700–7500K). Collimating lens in optical polymer to shape the beam precisely. Control options: On-board Dim (rotary brightness control), DALI dimmable or Casambi Bluetooth. Adapter options include ERCO 3‑circuit adapter or ERCO DALI adapter; other adapters on request. System & application highlights Typical family ranges: power approx. 3.1 W–34.9 W; luminous flux approx. 274 lm–4,437 lm depending on configuration. Suitable for accent lighting, outline projection, zoom applications and wallwashing; supports narrow to very wide beams and uniform wallwashing with lens wallwashers. ERCO provides planning tools and simulations (spotlight, zoom, outline, flood and wallwasher arrangements) to assist specification and layout. Technical specifications Product family: Optec New (track spotlights) Design life target: approx. 75,000 hours (~20 years at ~10 h/day) Optics: Spherolit lenses, zoom lenses, projection/framing lenses (optical polymer) Beam types: narrow spot, spot, flood, wide flood, extra wide flood, oval flood, oval wide flood, wallwash; zoom spot/zoom oval; narrow/wide framing LED colour temperatures: 2700K, 3000K, 3500K, 4000K; Tunable White 2700–7500K Materials & finishes: polymer housing; cast aluminium light head (powder-coated); finishes White RAL9002, black, silver Tilt & rotation: head tilt up to 270°; lens/housing rotatable 360° on adapter Control: On-board Dim, DALI, Casambi Bluetooth Adapters: ERCO 3‑circuit or ERCO DALI; further adapters on request for other track systems Typical luminous flux / power family range: approx. 274 lm–4,437 lm; approx. 3.1 W–34.9 W (depending on configuration)
