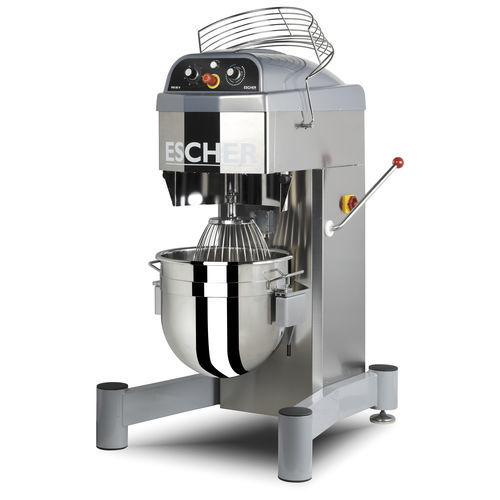

Planetary mixer PM LINE
for pastry shopsfor bakerieswith whisk

Add to favorites

Compare this product

Go to the ESCHER MIXERS S.R.L. website for more information

Characteristics

Type

planetary

Applications

for pastry shops, for bakeries

Default tool

with whisk, with spiral hook, with paddle

Bowl characteristics

removable bowl

Tool characteristics

fixed head

Protection

with metal protection grid

Other characteristics

commercial, with timer

Installation

floor-standing

Capacity

20 l, 40 l, 60 l, 80 l
(5 gal, 11 gal, 16 gal, 21 gal)

Tool speed

Min.: 31 rpm
(195 rad.min-1)

Max.: 465 rpm
(2,922 rad.min-1)

Power

1.1 kW, 2.2 kW, 4 kW
(1.5 hp, 2.99 hp, 5.44 hp)

Machine width

500 mm, 870 mm
(20 in, 34 in)

Machine depth

680 mm, 1,040 mm, 1,160 mm
(27 in, 41 in, 46 in)

Machine height

880 mm, 1,250 mm, 1,455 mm, 1,460 mm
(35 in, 49 in, 57 in, 57 in)

Machine weight

120 kg, 130 kg, 220 kg, 225 kg, 305 kg
(265 lb, 287 lb, 485 lb, 496 lb, 672 lb)

Description

The PM range of planetary mixers guarantees thorough mixing results and combines a sturdy construction with a modern essential design. · 20-40-60 and 80 liter models with variable speed for the tools – lever-operated bowl support system. · stainless steel bowl and three tools(hook, beater, and whisk) · stainless steel front grid · timer with manual regulation · 10-20-40-60-liter reductions with bowland 3 tools · heavy-wire whisk· bowl scraper· bowl trolley · machine completely constructed in stainlesssteel (standard 40-60-80 models are built instainless steel, with the exception of the feetand of the head cover). Very easy tool fixing/releasing system thanks to the absence of lock rings. The machinery stands out for the lack of oil bath gears, which eliminates the risk of contaminating the product. As there are no gears, maintenance proceduresare reduced to a minimum. All parts in contact with food products are instainless steel. It is important to underline that our models 40-60 are supplied standard with a stainless steel frame. This brings an important advantage in terms of hygiene and maintenance of themachine.
