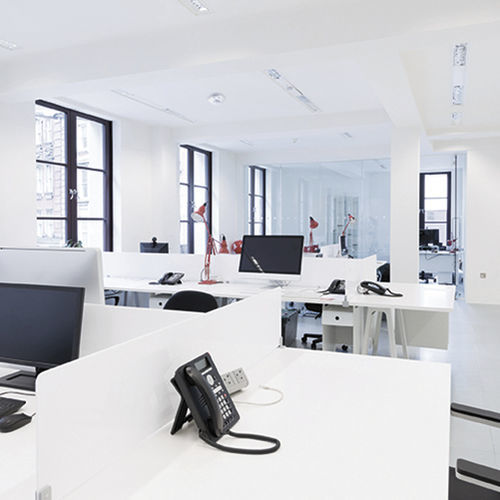

Presence detector PD 360/24

motionsurface-mountedcommercial

The tried-and-tested technology in the Standard series is suitable for many different applications in buildings. Multiple variants of the presence and motion detector enable flexible application due to the different fields of detection, installation types and further details. SHORTFACTS Installation typeRecessed mounting Installation positionCeiling Protection typerecessed-mounted IP20, IP54 with surface-mounted box (order separately) DimensionsHeight/Depth 60 mm, Ø 140 mm Power consumption0.4 W Detection angle360° Detection range diagonallyØ 24 m field of detectionup to 453 m² Light measurementmixed light Warranty3-year TECHNICAL DATA GENERAL ConformityCE , RoHS , SundaHus , WEEE MOUNTING Installation typeRecessed mounting Installation positionCeiling Installation dimensionInstallation depth: 15 mm, Ø 60 mm Connection2,5 mm² / 1,5 mm² HOUSING DimensionsHeight/Depth 60 mm, Ø 140 mm Weight315 g MaterialUV-stabilised polycarbonate Protection typerecessed-mounted IP20, IP54 with surface-mounted box (order separately) Permissible ambient temperature0 °C...+50 °C Relative humidity5 - 95 %, non-condensing Colourwhite, similar to RAL 9010 ELECTRICAL VERSION Protection classII Nominal voltage230 V / 50 Hz Power consumption0.4 W SENSORS Detection angle360° Detection range diagonallyØ 24 m Detection range head-onØ 8 m Detection range presenceØ 6 m field of detectionup to 453 m² Recommended installation height3 m Max. mounting height10 m Slave inputNo Fully automaticyes Semi-automaticNo Impulse featureyes Switching delay from "dark to light" [s]0 s Switching delay from "light to dark" [s]0 s
