Thermal-acoustic insulation WOODGIPS

acousticwood fiberpanel

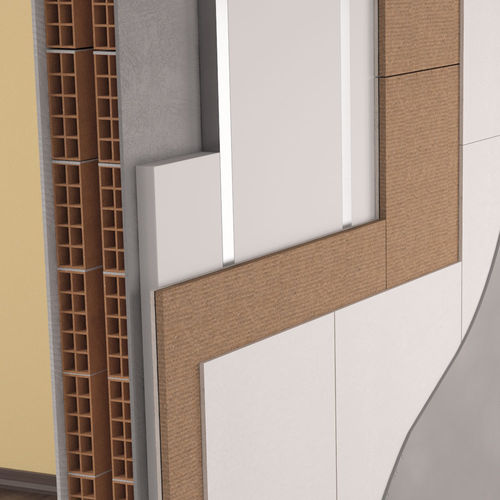

WOODGIPS soundproofing panel of 32 mm thickness and a mass per unit area of 16.5 kg/m2, CE marked according to the UNI EN 14190, obtained from a plaster coated SOUNDBLOCK board with thinned edges coupled to a wood fiber panel from 250 kg/m3 and 19 mm thick. By virtue of its mass per unit area and mating with a wood fiber panel, WOODGIPS is used for the sound insulation of partition walls, false walls and false ceilings, and even when there is a simultaneous requirement to improve thermal insulation. Generally it is associated with the SOUNDBLOCK slab board laid in view. It is delivered in boards with the dimensions of 1.20 m x 2.00 m. Unless otherwise indicated, the installation is done by adopting the techniques and equipment usually employed in works in ordinary plasterboard.
