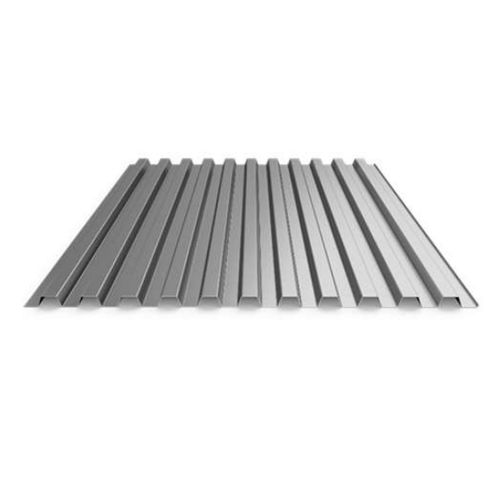

Ribbed metal sheet TIRRENO FA

galvanized steel3Dgalvanized

Description
Architectural metal façade profile TIRRENO (reference 11.78.24) by Europerfil. Designed for single-skin architectural façades or as the outer skin of double-skin (sandwich) façades. Rib (nerve) height: 24 mm. Useful (effective) width: 874 mm. Available thicknesses: 0.6 mm and 0.8 mm. Manufactured from coated galvanized steel sheet, pre-painted in accordance with EN 10169 and offered in Europerfil standard colours and coatings. CE marking: EN 14782. Vertical installation recommended.

Manufactured in
Steel

Solutions

• Single-skin façade
• Façade systems
• In-situ sandwich façade

Technical specifications

• Product name: TIRRENO
• Product reference (page): 11.80.24 — reference shown in description: 11.78.24
• Rib (nerve) height: 24 mm
• Useful (effective) width: 874 mm
• Available thicknesses: 0.6 mm and 0.8 mm
• Base material: coated galvanized steel sheet (pre-painted)
• Coatings: with or without additional organic coatings (compliant with EN 10169)
• CE marking: EN 14782
• Recommended laying orientation: vertical
• Note: Europerfil reserves the right to modify technical specifications and products without prior notice. Information on the datasheet is indicative; in case of discrepancy, the most recent official documents prevail.
