Sheet cladding ENTROPÍA FA

steelverticalhorizontal

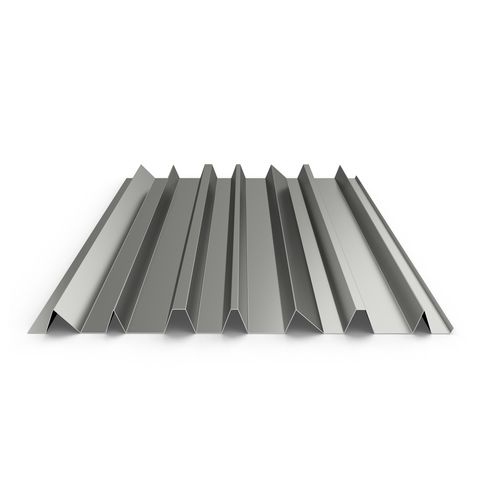

ENTROPÍA architectural metal profile (7.765.50) from Europerfil. Nerve height 50 mm, useful width 765 mm, and thickness from 0.60 mm to 1.20 mm. Galvanised and pre-lacquered steel (EN 10169) in standard Europerfil colours and coatings. CE marking (EN 14782). Auxiliary complements: Application perforation for lighting and natural ventilation.

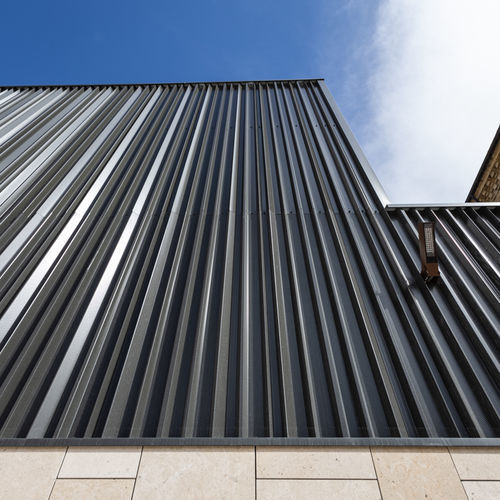

The ENTROPÍA profile can be combined with the various profiles in the range, including ENTROPÍA V1 and ENTROPÍA V2. This combination creates a more dynamic façade appearance.

Manufacturing materials
Galvanised and pre-painted steel (EN 10169) and aluminium
Other metals (stainless steel, weathering steel, copper, brass) available on request

Applications
Single-skin façade
Cladding and metal façade systems
Built-up sandwich façade systems

Product documentation
Technical datasheet (PDF), CAD details and BIM object available upon request.

Features / Technical specifications
Reference: 7.109.50
Designation: ENTROPÍA
Rib height: 50 mm
Effective width: 765 mm
Thickness: 0.60 mm to 1.20 mm
Base material: galvanised and pre-painted steel (EN 10169); aluminium; other metals (stainless steel, weathering steel, copper, brass)
Finish / colour: EUROPERFIL standard colours and coatings
CE marking: EN 14782
Accessories: perforations for integrated daylighting and natural ventilation
