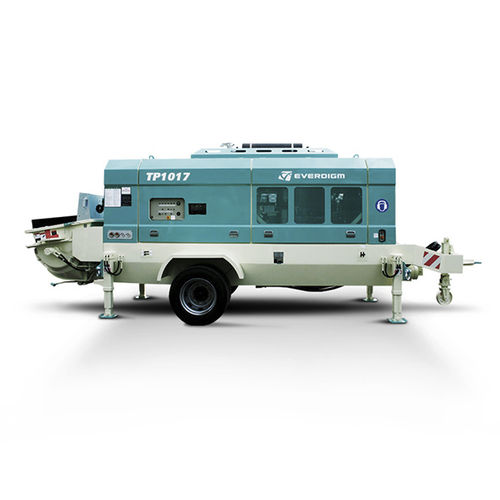

Trailer-mounted concrete pump ETP1017

Pump Cell 2109 Del. Cyl. Storke/Diameter 2,100/180 mm Max.Theo.Concrete Pressure(Rod/Piston) 190/277 kg/㎠ Max. Theo. Vertical Transfer 400 m Max.Theo.Horizontal Transfe 900 m Overall length : 7,550mm Overall width : 2,660mm Overall height : 2,890mm Total weight : 10,000kg Maker : SCANIA Model : DC16 40A, V8 cylinders Power output : 432kW at 2,100rpm Torque : 253kg.m at 1,400rpm Displacement : 15.6 lit Bore x Stroke : 127 x 154mm Emission standard : TIER-2 Cooling system : Water cooled Battery : Nos. 2 x DC12V Main pump type : Rexroth A4VG180 (Double) Main pump capacity : Nos. 2 x 180cc/rev Main pump pressure : 350kg/cm2 Accumulator pump : Rexroth A10V28 Theoretical Vertical Reach Rod side : 309m Piston side : 453m Theoretical Horizontal Reach Rod side : 576m Piston side : 842m Outrigger : Front and rear hyd. jack Aux support : One front height adjustable Axle : 1 axle & 2 double tires Water pump : Installed Water tank : No application Hopper : EZ Clean Type, 600L Hopper lubrication : Auto greasing Agitator motor : Double motors on hopper Remote control : Optional, wire or wireless
