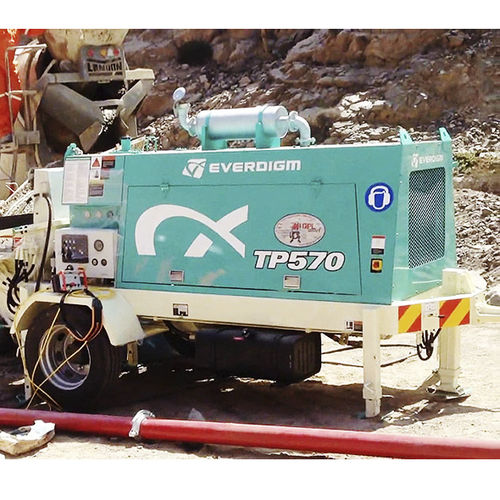

Trailer-mounted concrete pump ETP570

Everdigm Boom pumps are based on FFH oil pressure system, and its superior performance is approved in international market. Everdigm offers new paradigm in Boom pumps industry with highly engineered products, where durability and productivity is guaranteed. Everdigm concrete boom pumps are great business partner for success. ■ Maximize working efficiency with FFH System application. ■ Reliable quality by application Rextroth pump unit Brand and Stibel Gear Box. ■ Theoretical vertical concrete transfer up to 550m, horizontal up to 1000m. ■ Theoretical concrete pressure up to 300bar. ■ Hard metal of tungsten carbide wear plate & ring. ■ Remarkable mobility. Item ETP570 Pump Cell 1005 Del. Cyl. Storke/Diameter 1,000/180 mm Max.Theo.Concrete Pressure(Rod/Piston) 65/108 kg/㎠ Max. Theo. Vertical Transfer 110 m Max.Theo.Horizontal Transfe 250 m Overall length : 4,840mm Overall width : 2,180mm Overall height : 2,320mm Total weight : 3,800kg Front : Manual jack support Rear : Manual jack support Aux support : One front hyd. jack Axle : 1 axle & 2 single tires Water pump : Optional Water tank : No application Hopper : EZ Clean Type, 400L Hopper lubrication : Manual greasing port Agitator motor : Single motor on hopper Remote control : Optional, wire or wireless
