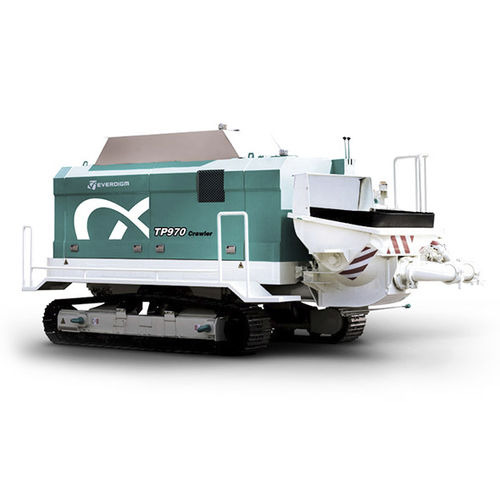

Trailer-mounted concrete pump ETP970

crawler

Everdigm Boom pumps are based on FFH oil pressure system, and its superior performance is approved in international market. Everdigm offers new paradigm in Boom pumps industry with highly engineered products, where durability and productivity is guaranteed. Everdigm concrete boom pumps are great business partner for success. ■ Maximize working efficiency with FFH System application. ■ Reliable quality by application Rextroth pump unit Brand and Stibel Gear Box. ■ Theoretical vertical concrete transfer up to 550m, horizontal up to 1000m. ■ Theoretical concrete pressure up to 300bar. ■ Hard metal of tungsten carbide wear plate & ring. ■ Remarkable mobility. Pump Cell : 1609 Del. Cyl. Storke/Diameter : 1,600/200 mm Max.Theo.Concrete Pressure(Rod/Piston) : 71/106 kg/㎠ Max. Theo. Vertical Transfer : 110 m Max.Theo.Horizontal Transfe : 250 m Overall length : 6,000mm Overall width : 2,100mm Overall height : 2,540mm Total weight : 5,700kg Max. Theoretical Concrete Output Rod side : 90m3/hr at 71 bar Piston side : 60m3/hr at 106 bar Drive cylinder dia. : 110 x L1,600mm Concrete cylinder dia. : 200 x L1,600mm Transfer S-tube, S2012 (dia. 200mm-125mm) Outrigger : Front and rear manual jack Aux support : One front height adjustable Axle : 1 axle & 2 single tires Water pump : Optional Water tank : Optional (200L) Hopper : EZ Clean Type, 600L Hopper lubrication : Manual greasing port Agitator motor : Single motor on hopper Remote control : Optional, wire or wireless
