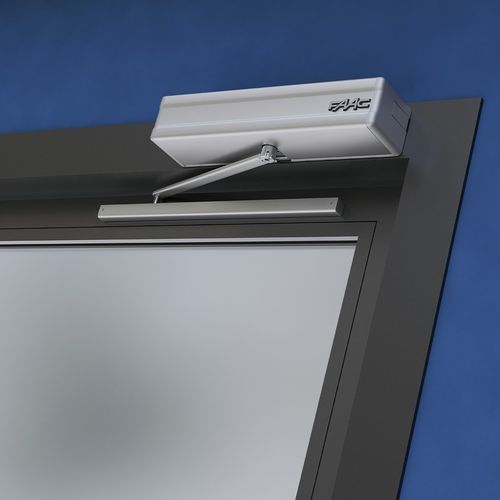

Swing door automation 950N2

Swing Door Automation 950N2 automation, compliant with EN16005, allows to move doors weighing more than 360 Kg silently and in continuous use. The housing cover is made of silver anodized aluminum. MAX LEAF WEIGHT From 286 to 367 Kg LEAF LENGTH From 700 to 1400 mm Versatile and stylish The FAAC 950N2 automations (with spring closing system) can be installed both on the architrave and directly on the structure of the door. The innovatively designed housing cover can be supplied in anodised extruded aluminium or moulded ABS. The 950N2 automations can also be used to automate double-leaf entrances by setting up two units in a master / slave configuration allowing the double leaf to be moved as if by a single system. Safe and intelligent The automation system is equipped with two electronic boards: 950N2 MPS (control board) and 950N2 I/O (input/output board). A microprocessor controls all door activity in real time and a magnetic encoder continuously detects its angular position. The operating logic (automatic, manual, night, open) can also be selected via an integrated selector. The system is manufactured in conformity with the new European Safety Standards. The speed and force are programmed according to the dimensions of the door. If an obstacle is detected, the door re-opens immediately and as it closes, it checks, at reduced speed, that the obstacle is no longer present. Technical description Power supply voltage 220-240 V~ - 50/60 Hz Max power 100 W Standby power 5 W Use frequency 100% Electric motor Motor powered at 24V Max accessories load 1A - 24V Electric lock power supply voltage (N.O./N.C.) 24 V / 500 mA max Dimensions (LxDxH) 530x160x105 mm Weight 10 kg
