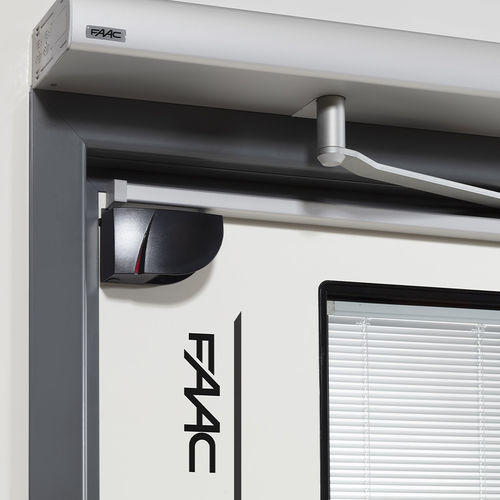

Swing door automation HERMETIC

Overview

• These automatic, manual or semi-automatic single- or double-leaf swing doors are designed for environments requiring control of bacterial contamination and airtight performance.
• They are compatible with prefabricated systems and can be installed on standard walls; available in standard, airtight or hermetically sealed versions.
• Operation can be manual or automatic using electromechanical components with control, regulation and monitoring systems configurable to application requirements.

Door Frame
The door frame is adjustable on three sides and is composed of two elements: the frame profile and the subframe profile made from extruded aluminium and/or wide rounded stainless steel. Inside the frame profile there are grooves to accommodate the friction seal that connects it to the subframe profile. A special internal groove is provided for fastening; this groove is closed by a joint seal flush with the frame profile.

Leaf
The leaf is built with shaped extruded aluminium profiles with wide rounded corners and is designed to accept special locks. The lower part of the leaf is shaped to receive a draft excluder profile. In FHE doors the leaf profiles overlap the panel; flush panels are available on request for specific applications.

Technical description — A952 Swing Door Operator

• Power supply voltage 100-240 V~ - 50/60 Hz
• Max power 190 W
• Standby power 7,3 W
• Use frequency 100%
• Electric motor Motor powered at 36 V
• Max accessories load including electric lock 1,2 A - 24 V
• Dimensions (LxDxH) 715 x 150 x 74 mm
• Weight 12 Kg
• Operation in case of power cut Manual push/pull opening - Spring closing
• Max leaf opening angle 100° ÷ 125°
• Opening and closing leaf time 4 - 10 s (adjustable)
• Pause time 0 - 30 s
• Night pause time 0 ÷ 90 s
• Encoder As standard
• Protection sensor monitoring (EN16005) As standard (may be excluded)
• Low energy movement (EN16005) As standard (may be excluded)
• Operating ambient temperature -20°C ÷ +45°C
• Protection class IP30
• Compliance with regulations EN 16005; EN 61000-6-2; EN 61000-6-3; EN 13849-1 Pl. D; EN 13849-2; DIN 18650-1; DIN 18650-2

Models / Item code
Model — Item code
FHE-HSA Airtight automatic swing door — 105145
FHE-HSM Airtight manual swing door — 105146
FHE-HHA Airtight automatic swing door — 105147
FHE-HM Non Airtight manual swing door — 105148
FHE-HA Non Airtight automatic swing door — 105149

Features / Technical specifications

• Product: Swing Hermetic Entrance (hermetically sealed options for hospitals and sterile environments)
• Available versions: manual, automatic, semi-automatic; single or double leaf; standard, airtight or hermetically sealed
• Frame: adjustable on three sides; frame profile + subframe profile in extruded aluminium and/or wide rounded stainless steel; internal grooves for friction seal and fastening; joint seal flush with frame profile
• Leaf: shaped extruded aluminium profiles with wide rounded corners; provision for special locks; lower profile designed for draft excluder; in FHE doors leaf profiles overlap the panel (flush panels available on request)
• Recommended operator: A952 Swing Door Operator — power supply 100-240 V~, max power 190 W, standby 7.3 W, motor at 36 V
• A952 physical dimensions: 715 x 150 x 74 mm; weight 12 kg
• Accessories load: up to 1.2 A at 24 V (including electric lock)
• Operational characteristics: continuous use (100% duty), manual operation on power cut with spring closing, opening angle 100°–125°, adjustable opening/closing time 4–10 s, pause time 0–30 s, night pause up to 90 s
• Safety & control: encoder standard; protection sensor monitoring and low energy movement compliant with EN16005 (may be excluded)
• Environmental / protection: operating ambient temperature -20°C to +45°C; protection class IP30
• Regulatory compliance: EN 16005; EN 61000-6-2; EN 61000-6-3; EN 13849-1 Pl. D; EN 13849-2; DIN 18650-1; DIN 18650-2
