Swing door automation A952
with emergency exit functionswing-armwith slide

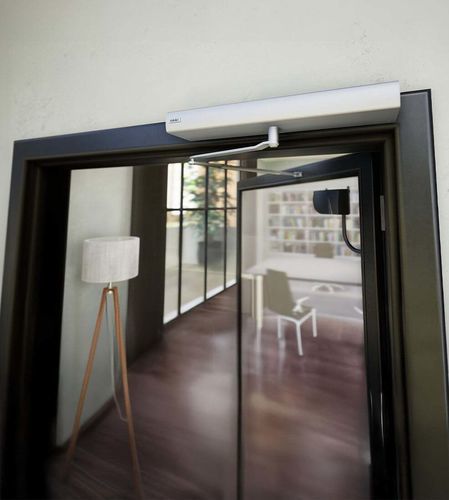

Swing door automation - A952 - FAAC - with emergency exit function / swing-arm / with slide
Swing door automation - A952 - FAAC - with emergency exit function / swing-arm / with slide
Swing door automation - A952 - FAAC - with emergency exit function / swing-arm / with slide - image - 2
Swing door automation - A952 - FAAC - with emergency exit function / swing-arm / with slide - image - 3
Swing door automation - A952 - FAAC - with emergency exit function / swing-arm / with slide - image - 4
Swing door automation - A952 - FAAC - with emergency exit function / swing-arm / with slide - image - 5
Swing door automation - A952 - FAAC - with emergency exit function / swing-arm / with slide - image - 6
Swing door automation - A952 - FAAC - with emergency exit function / swing-arm / with slide - image - 7
Swing door automation - A952 - FAAC - with emergency exit function / swing-arm / with slide - image - 8
Swing door automation - A952 - FAAC - with emergency exit function / swing-arm / with slide - image - 9
Add to favorites
Compare this product

Characteristics

Applications
swing door
Options
swing-arm, with slide, with emergency exit function

Description

Overview
  • The A952 automation, compliant with EN16005, moves doors up to 450 kg in continuous use and operates with very low noise.
  • Installs on escape routes in compliance with EN16005 and meets safety requirements of EN13849-1 Pl. D.
  • Variable-ratio rack and pinion providing constant spring compression (FAAC PATENT).
  • Variable-ratio parallel-shaft gears for smooth and effective movement (FAAC PATENT).
  • Compact dimensions suitable for fire doors and smoke-venting applications.
  • Housing cover in silver anodized aluminium.
  • Environmental Product Declaration (EPD) available, describing lifecycle environmental performance (ISO 14025).


Key performance data
  • Max leaf weight: 450 kg
  • Leaf length: from 700 to 1600 mm
  • Max leaf width: up to 1600 mm (see technical specifications for configuration limits)


Applications & versatility
  • Special spring system with push/pull function depending on installation (sliding arm or articulated arm) makes the A952 adaptable to standard use, emergency exits, fire-resistant doors or smoke evacuation.
  • Suitable for education, airports, hospitals, hotels, residential buildings and offices.


Characteristics / Technical specifications
  • Model: A952
  • Brand: FAAC
  • Power supply: 110-240 V~ - 50/60 Hz
  • Max power: 350 W
  • Standby power: 5 W
  • Use frequency: 100% (continuous use)
  • Electric motor: 24 V driven
  • Max accessories load: 1 A - 24 V
  • Electric lock supply (N.O./N.C.): 24 V / 500 mA max
  • Dimensions (L x D x H): 715 x 150 x 74 mm
  • Weight: 12 kg
  • Operation on power failure: Manual push/pull opening - Spring closing
  • Max leaf opening angle: 100° ÷ 125°
  • Opening/closing time: 4 - 10 s (adjustable)
  • Partial opening adjustment: 10% - 90% of total opening
  • Pause time: 0 - 30 s
  • Night pause time: 0 ÷ 90 s
  • Encoder: Standard
  • Protection sensor monitoring (EN16005): Standard (can be excluded)
  • Low energy movement (EN16005): Standard (can be excluded)
  • Operating temperature: -20 °C ÷ +55 °C
  • Protection class: IP23 (for indoor use only)
  • Standards compliance: EN 16005; EN 61000-6-2; EN 61000-6-3; EN 13849-1 Pl. D; EN 13849-2
  • Compact example dimensions: 73 x 150 x 715 mm
  • Spring tested for more than 1,000,000 cycles
  • Maximum door leaf: 1600 mm width and 450 kg weight; maximum inertia 130 kg·m2 (both sliding and articulated arms)


Multimedia
  • Product video (Vimeo) and image gallery available showing installation examples and product details.


Models / Items
  • A952 — Electronic control unit with function selector and anodised aluminium cover — Passage opening: 700 ÷ 1600 mm — Max leaf weight with articulated arm: 700 kg (750 mm); with sliding arm: 800 kg (700 mm); for 1600 mm leaf: 150 kg — Item code: 105952
  • Arms (accessories): Articulated push arm — Item code 390189
  • Standard sliding block arm — Item code 390187
  • Short sliding block arm — Item code 390188
