Parking barrier B614

access controlboomplastic

Overview

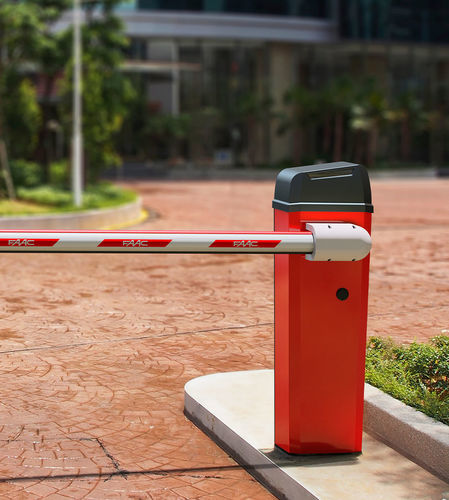

FAAC B614 is a 24V automatic barrier designed for parking and vehicle access control. A 24V motor with integrated encoder provides precise motion control and enables reverse-on-obstacle safety. The barrier uses a quadrilateral lever system with two reduction stages to ensure smooth beam movement and consistent operation.

Safety and performance
Anti-crushing safety is ensured via the integrated encoder and motion control, with reverse-on-obstacle function supported. Electronic components are housed in the upper section under a coloured plastic cover that improves LED visibility. Programming is intuitive via buttons and display, with multiple operating logics and configurable parameters.

Key performance indicators

• Max beam length: 6 m
• Opening time: < 2 s (80° with 3 m beam)
• Use frequency: Continuous use

Models / Item codes (table)
B614 Red RAL 3020 | 104614
B614 Grey RAL 9006 | 1046143

Complete range of accessories
Numerous accessories are available to tailor the barrier to the installation: beam lights and traffic light kit, hedge kit, joint kit, end foot and beam support fork.

Greater visibility, greater safety
Optional integrated flashing traffic light with programmable high-efficiency red/green LEDs. Optional reflective stickers and LED lighting along the beam (rounded or rectangular) improve visibility in low-light conditions.

Electronics and installation
Dedicated and intuitive electronics are integrated under a protective coloured cover. Programming via buttons and display enables quick setup. Compatible accessories include electronic control boards (e.g., E614) and a range of safety and radio devices.

Accessories & complements (examples)

• Electronic control unit: E614
• Radar sensors for barriers: Evoloop & R-Loop
• Transmitters: FDS System, XTO (omniDEC)
• Photocells: XP 20 D, XP 30
• Flashing light: XLED
• TAG reader / keypads: XTR B, XKP

Technical specifications

• Power supply voltage: 220-240V ~ 50/60 Hz
• Electric motor: Brushed 24V DC
• Max power: 165 W
• Max beam length: 6 m
• Opening time: < 2 s (80° with 3 m beam)
• Use frequency: Continuous use
