Parking barrier B680H

access controlboomremovable

Overview
FAAC B680H is an automatic barrier engineered for intensive, continuous use. It combines hydraulic technology with a brushless motor; springs are designed to exceed 2,000,000 cycles.

Integrated absolute encoder
Absolute encoder kit for precise motion control and automatic beam reversal on obstacle detection, ensuring the impact curve is respected and pedestrian passages meet safety requirements.

Switching power supply
High-efficiency switching power supply with wide input range (100 ÷ 240V~ 50/60 Hz) protects barrier operation against voltage fluctuations in non-optimal supply systems.

Key performance

• Max beam length: 2 – 8 m
• Opening time: 1.5 – 6 s (90°)
• Use frequency: Continuous use (100% duty cycle)

Hybrid heart
The hydraulic pump driven by a brushless motor enables rapid movement of both short and long beams while supporting continuous operation and high-frequency passages.

Different needs, different colors

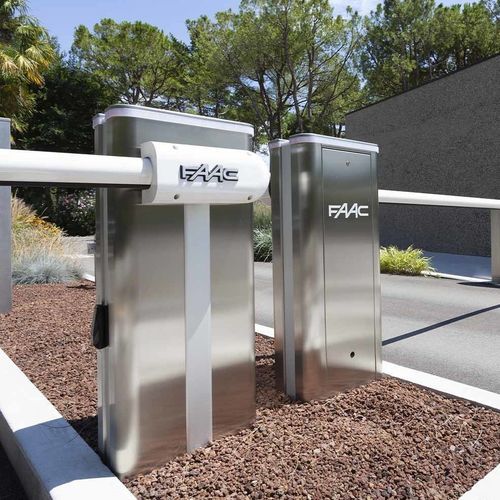

Removable cover available in four RAL shades (Flame Red, Steel Blue, Pure White, Aluminum Grey) or in a stainless-steel version for aesthetic integration.

Model / Item code
Model: B680H
Item code: 104680

Technical specifications

• Power supply voltage: Switching 100 ÷ 240V~ 50/60 Hz
• Electric motor: Brushless (presentation mentions 24V; technical sheet lists Brushless 36V DC)
• Max power: 240 W
• Max beam length: 2 ÷ 8 m
• Opening time: 1.5 s (90° - 2 m) – 6 s (90° - 8 m)
• Use frequency: Continuous use
• Springs: 'everlasting' design > 2,000,000 cycles
