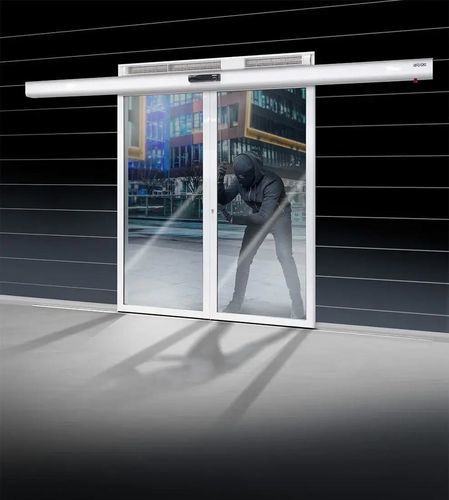

Entry door TK35 RC 3aluminumsteelsliding
Add to favorites
Compare this product
Characteristics
- Type
- entry
- Material
- aluminum, steel
- Opening system
- sliding
- Style
- contemporary
- Glazing
- glazed
- Configuration
- double leaf
- Technical characteristics
- security, acoustic, automatic, thermally-insulated, anti-intrusion
- Color
- white
Description
Overview
Passage opening
850 - 1,800 mm
Additional product focus
Technical description highlights
Technical specifications
- Complete automatic door consisting of a self-supporting extruded aluminium frame with 35 mm profiles and a dedicated anti-intrusion profile.
- Shatterproof glazing available in class P5A (44.6/10/33.2) with low-emission option or in class P6B (66.8-6-33.2).
- Certified both with and without a built-in air curtain.
- Flush-mounted stainless steel floor guide providing a continuous ground track across the full width of the sliding leaves.
- Finishing by anodising or RAL colour painting.
- Multi-point security lock fitted on the vertical uprights of the mobile leaves.
- Thermal and acoustic sealing ensured by perimeter brushes.
- Door life cycle: 1,000,000 cycles.
Passage opening
850 - 1,800 mm
Additional product focus
- Maximum tamper-proof security achieved via the continuous floor guide and a special anti-lift device that prevents forced opening of the leaves.
- EU certification: Class RC 3 according to EN 1627, resistant to break-in attempts with hand tools (wedges, screwdrivers, pincers, crowbars).
- Product innovation features: SAFEzone, GREENtech and Simply Connect compatibility for enhanced safety, energy efficiency and remote management.
Technical description highlights
- Use frequency: 100%.
- Operating temperature range: -20°C to +55°C.
- Installation note: TK35 RC 3 must always be used with a FAAC automated system.
Technical specifications
- Frame: extruded aluminium, 35 mm profiles with anti-intrusion profile.
- Glazing options: P5A (44.6/10/33.2) low-emission or P6B (66.8-6-33.2).
- Built-in air curtain: available and certified both with and without.
- Floor guide: flush-mounted stainless steel continuous ground track.
- Locks: multi-point security lock on vertical uprights.
- Sealing: perimeter brushes for thermal and acoustic closure.
- Durability: 1,000,000 door cycles.
- Passage opening range: 850 - 1,800 mm.
- Certifications: Class RC 3 per EN 1627; conformity with EN16005 and EN1627.
- Operating environment: suitable for public and high-security areas (shops, supermarkets, banks, hospitals, etc.).
