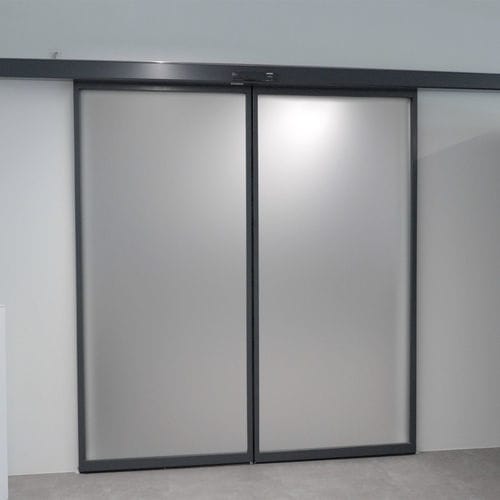

Entry door AS3000 Series

metalglasssliding

Product range

• AS3010: leaf weight up to 120 Kg
• AS3020: leaf weight up to 200 Kg
• AS3030: leaf weight up to 300 Kg

TÜV Certification
Compliant with the European standard EN16005 for use on escape routes; production monitored by TÜV SÜD.

Low power consumption
Standby energy consumption reduced to a maximum of 0.5 W in compliance with EU Directive 2009/125/EC and EU Regulation 2023/826.

AIRSLIDE System (FAAC patent)
Automatic sliding door operator with built-in air curtain designed to limit energy dispersion, reduce ingress of external pollutants and minimize drafts to improve indoor comfort.

Key data (summary)
Max leaf weight — AS3010: 120 Kg (or 100 + 100 Kg); AS3020: 200 Kg (or 150 + 150 Kg); AS3030: 300 Kg (or 200 + 200 Kg). Passage opening — 700 - 3000 mm / 800 - 3000 mm.

Technical description (data)

• Power supply voltage — 100–240 V~ 50/60 Hz
• Torque — AS3010: 1.5 Nm; AS3020: 3.2 Nm; AS3030: 3.2 Nm
• Max absorbed power (W) — AS3010: 100; AS3020: 150; AS3030: 300
• Ambient operating temperature — -20 °C to +55 °C
• Automation protection rating — IP23 (indoor use)
• Type of electric motor — Brushless DC
• Sound pressure (LpA) — < 40 dB(A)
• Max. accessories load (including DPE3) — 1 A, 24 V
• Time/date backup battery — Lithium CR2032 3 V
• Motion backup battery — NiMH 24 V 1800 mAh

Focus and installation
Supporting beam includes guides for component attachment to ensure secure and straightforward installation. All components are easily accessible for maintenance; magnetic hinges facilitate access.

Advanced accessories
A selection of function and programming selectors:

• BFQ3 Squared function keypad 80 x 80 mm
• KEX3 Key selector 80 x 80 mm
• DPE3 Programming selector with display
• BFS3 Slim surface-mounted function selector

Other product highlights

• Integrated identifiers: SAFEzone (absolute encoder / compliance upgrade), GREENtech (energy/component efficiency), Simply Connect (remote-control compatible board)
• FDS integrated transmitter decoding
• 2easy two-wire accessory protocol
• TÜV SÜD production monitoring
• Standby energy saving features

Technical specifications

• Power supply voltage: 100–240 V~ 50/60 Hz
• Torque: AS3010 = 1.5 Nm; AS3020 = 3.2 Nm; AS3030 = 3.2 Nm
• Max absorbed power (W): AS3010 = 100; AS3020 = 150; AS3030 = 300
• Ambient operating temperature: -20 °C to +55 °C
• Automation protection rating: IP23 (indoor use)
• Type of electric motor: Brushless DC
• Sound pressure (LpA): < 40 dB(A)
• Max. accessories load (including DPE3): 1 A, 24 V
• Backup batteries: Time/date CR2032 3 V; Motion NiMH 24 V 1800 mAh
• Max leaf weight and configurations as listed above
• Passage opening: 700 - 3000 mm / 800 - 3000 mm (configurations)
• Standby consumption: max 0.5 W (EU compliant)
• Built-in AIRSLIDE: sliding door with integrated air curtain
• Certifications: TÜV SÜD; EN16005 compliance for escape routes
• Installation aids: supporting beam guides, magnetic hinges
• Available accessories: BFQ3, KEX3, DPE3, BFS3
• Multimedia: Product video available (FAAC AS3000 Series)
