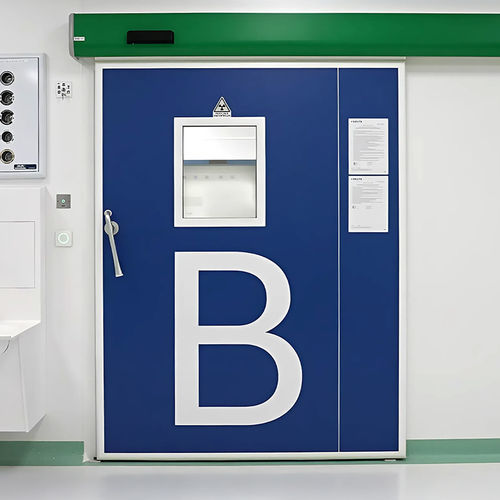

Entry door FHEmetalglasssliding
Add to favorites
Compare this product
Characteristics
- Type
- entry
- Material
- glass, metal
- Opening system
- sliding
- Style
- contemporary
- Glazing
- without glazing, glazed, semi-glazed
- Configuration
- 1 leaf, double leaf
- Technical characteristics
- security, automatic, waterproof, hermetic
- Color
- white, blue
Description
Overview
Versions
Operation
A1400 AIR Sliding Door Operator
Models / Item codes
Example installation / Gallery
Example installations illustrate typical mounting, integration with prefabricated walls and finished appearance in sterile or controlled environments.
Technical specifications
- Automatic or manual single- and double-leaf sliding doors designed for environments requiring bacterial contamination control and airtight or hermetic sealing.
- Suitable for installation on prefabricated systems and standard walls. Available in two main configurations: airtight and hermetically sealed.
Versions
- Airtight version (FHE-SSA / FHE-SSM): vertical seals engage with frame profiles while upper and lower seals slide along the horizontal profile and floor surface to ensure airtight closure.
- Hermetically sealed version (FHE-SHA / FHE-SHM): the leaf performs a combined sliding, vertical and inward movement during final closing to compress perimeter seals and achieve a full hermetic seal (up to 20 mm vertical stroke and approx. 45° inclination on final close), enabled by the support and trolley guide design without additional actuators.
Operation
- Available for automatic operation using electromechanical drives with control, regulation and monitoring systems appropriate to the application.
- Also available for manual operation with handles.
- Automatic configurations can integrate safety and monitoring devices in compliance with applicable regulations.
A1400 AIR Sliding Door Operator
- Power supply voltage 220–240 V~ 50/60 Hz
- Max power 140 W
- Standby power 3 W
- Use frequency 100% (continuous)
- Max leaf width 65 mm
- Electric motor 36 V motor with encoder
- Max accessories load 1 A — 24 V
- Type of traction toothed belt
- Opening/closing speed 10–60 cm/s (single leaf); 20–120 cm/s (two leaves)
- Partial opening adjustment 5%–95% of total opening
- Pause time 0–30 s or Energy Saving function
- Night pause time 0–240 s
- Encoder supplied as standard
- Protection sensor monitoring (EN16005) standard (may be excluded)
- Low energy movement (EN16005) standard (may be excluded)
- Operating ambient temperature −20°C to +55°C
- Protection class IP23 (internal use)
- Regulatory compliance EN 16005; EN 13489-1; EN 13489-2; EN 60335-1; EN 60335-2; EN ISO 12100; EN 61000-6-2; EN 61000-6-3
Models / Item codes
- FHE-SSA — Airtight automatic sliding door — 105141
- FHE-SSM — Airtight manual sliding door — 105142
- FHE-SHA — Hermetic automatic sliding door — 105143
- FHE-SHM — Hermetic manual sliding door — 105144
Example installation / Gallery
Example installations illustrate typical mounting, integration with prefabricated walls and finished appearance in sterile or controlled environments.
Technical specifications
- Series: FHE (models FHE-SSA, FHE-SSM, FHE-SHA, FHE-SHM)
- Two configurations: airtight and hermetically sealed (hermetic final close with up to 20 mm vertical stroke)
- Drive: automatic (A1400 AIR operator with 36 V motor and encoder, toothed belt traction) or manual
- A1400 AIR electrical data: 220–240 V~ 50/60 Hz; max 140 W; standby 3 W; continuous duty
- Opening/closing speed: 10–60 cm/s (single leaf), 20–120 cm/s (two leaves); partial opening 5%–95%
- Accessories load: 1 A — 24 V; encoder included; IP23 (indoor)
- Operating temperature: −20°C to +55°C
- Conforms to applicable EN standards including EN 16005 and relevant EN 13489 and EN 60335 series
