Protection radio remote control FDS SYSTEM

for securityfor home automation systemfor building automation systems

Product overview

• Operating frequency: 433.92–868.35 MHz.
• Radio code: FDS (FAAC DIGITAL SIGNATURE).

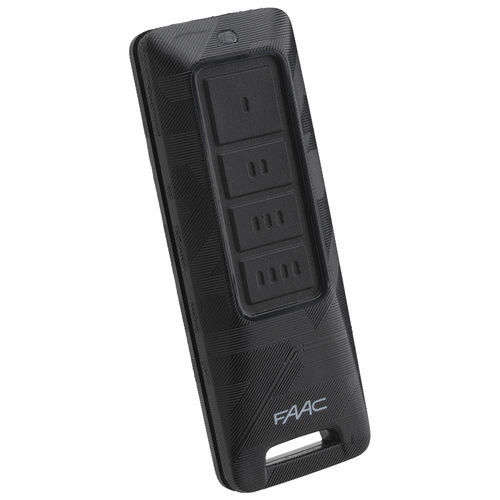

• Available models: XT2 FDS (2-channel) and XT4 FDS (4-channel); BD bidirectional variants: XT2 FDS BD, XT4 FDS BD.
• FDS (FAAC DIGITAL SIGNATURE): FM-based radio protocol engineered for extended range and battery life. Radio transmissions are protected by AES-128 symmetric encryption (128-bit key).
• Remote authenticity is verified through a chain of FAAC-customized security certificates.

Advantages

• Maximum protection against cloning enabled by an advanced security scheme with Secure Vault™ (PSA™ Level 3) and TrustZone® hardware technologies.
• Dual-frequency operation: transmitters and receivers communicate at 868 MHz and 433 MHz in time-sharing mode, removing the need to preselect the working frequency.
• Easy registration: simplified registration and management via SELF LEARNING or direct registration on the receiver.
• SLH compatible: FDS transmitters can operate as slaves on existing SLH systems if required.
• PHYGITAL and remote management: FAAC PHYGITAL transmitters integrated with Simply Connect enable remote add/remove/enable/disable and time-band management without dedicated onsite tools.

Security & Integration
Advanced security architecture combining Secure Vault™ and TrustZone® technologies. Integration with Simply Connect adds an extra layer of protection against cloning by verifying the authenticity of each transmitter ID and enabling centralized remote management.

Technical tables (models)
Table 1: Standard versions

• XT2 FDS 433-868 — Decoding: FDS — 2-channel transmitter (multiple quantity saleable: 16 pcs) — Colour: Black — Item code: 787017
• XT4 FDS 433-868 — Decoding: FDS — 4-channel transmitter (multiple quantity saleable: 16 pcs) — Colour: Black — Item code: 787018

Table 2: BD versions (bidirectional)

• XT2 FDS BD 433-868 — Decoding: FDS — 2-channel bidirectional transmitter (multiple quantity saleable: 16 pcs) — Colour: Black — Item code: 787019
• XT4 FDS BD 433-868 — Decoding: FDS — 4-channel bidirectional transmitter (multiple quantity saleable: 16 pcs) — Colour: Black — Item code: 787020

BD / Bidirectionality & accessories
BD variants provide local feedback on command reception and on automation status (closed/open). BD transmitters include a built-in TAG compatible with FAAC XTR B readers. Standard delivery includes a protective black case; other colours are available as options.

Technical specifications

• Frequency range: 433.92–868.35 MHz
• Radio code: FDS (FAAC Digital Signature)
• Encryption: AES-128 symmetric algorithm (128-bit key)
• Security technologies: Secure Vault™ (PSA™ Level 3) and TrustZone®
• Dual-frequency operation: 868 MHz / 433 MHz (time-sharing)
• Registration methods: SELF LEARNING and direct registration on receiver
• SLH compatibility: can operate with existing SLH systems
• PHYGITAL & remote management: integration with Simply Connect for remote add/remove/enable/disable and time-band management
• Available models: XT2 FDS (2-channel), XT4 FDS (4-channel)
• BD versions: XT2 FDS BD, XT4 FDS BD (bidirectional feedback)
• Colour (standard): Black
• Item codes: 787017 (XT2), 787018 (XT4), 787019 (XT2 BD), 787020 (XT4 BD)
• Packaging / saleable quantity: multiple quantity saleable 16 pcs
• BD functions: command received confirmation and automation status (closed/open)
• BD tag: built-in TAG compatible with FAAC XTR B readers
• Accessory: protective black case included; other colours optional
