Protection photoelectric cell XP 20 D

for securityfor access controlfor automatic doors

Product overview

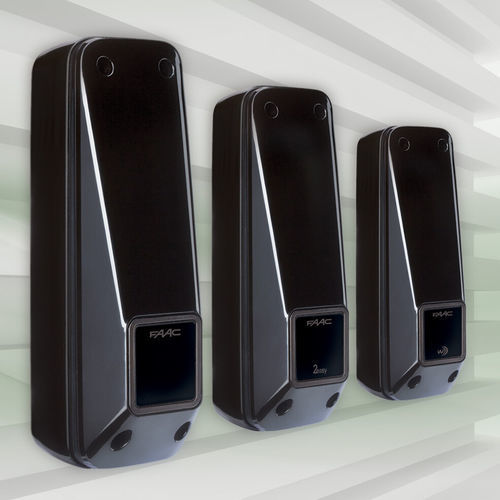

The XP 20 D adjustable wall photocell pair comprises a modulated infrared transmitter and receiver providing a detection beam with a nominal range up to 20 m. Beam obstruction changes the receiver state to detect obstacles reliably on gates and barriers.

Variants

• XP 20 D: System with conventional 24 V transmitter and receiver power supply.
• XP 20B D: BUS 2easy system using only two 24 V non-polarized wires; supports installation of up to 16 pairs on the same system; includes protection against interference from external light sources (e.g., vehicle LED headlights).
• XP 20W D: Receiver with 12–24 V supply; transmitter can be powered by 12–24 V or by battery (3 V CR2, not included), avoiding the need for a cable to the transmitter; selectable channels allow installation of up to 4 pairs and provide protection from external light interference.

Transmitter & receiver
A modulated infrared transmitter and receiver pair. Modulation improves immunity to ambient light. The pair detects beam interruption and is designed for wall-mounted installation.

Adjustment & mounting
The photocell is mounted on a swivel support with a high-performance lens to optimize beam efficiency in any direction. The swivel support can be locked with a quick-fit swivel lock (removable with a screwdriver if required). Horizontal adjustment from -90° to +90° and built-in self-alignment tolerances simplify alignment.

Technical specifications (table)
TECHNICAL SPECIFICATIONS | XP 20 D | XP 20B D | XP 20W D
Power supply voltage : 24V DC / 24V AC | via BUS 2easy, two 24V nonpolarized wires DC | Rx: 12-24V AC/DC; Tx: 12-24V AC/DC or battery-operated (3 V CR2 - not included)
Nominal range : 20 m | 20 m | 20 m
Type of installation : wall-mounted | wall-mounted | wall-mounted
Dimensions (LxHxD) : 41 x 130 x 42 mm | 41 x 130 x 42 mm | 41 x 130 x 42 mm
Horizontal adjustment angle : -90° +90° | -90° +90° | -90° +90°
Self-alignment angle : ±7° (20 m) ±13.5° (5 m) | ±7° (20 m) ±13.5° (5 m) | ±7° (20 m) ±13.5° (5 m)
Obstacle detection time : 13 ms | 20 ms | 40 ms
Absorbed current : Rx (30 mA) + Tx (20 mA) | Rx (10 mA) + Tx (10 mA) | Rx (30 mA) + Tx (40 mA battery-operated or 5 mA at 24V DC)
Protection class : IP54 | IP54 | IP54
Max contact capacity : 60 VA / 24 W (XP 20 D) | — | —
Operating room temperature : -20°C ÷ +55°C | -20°C ÷ +55°C | -20°C ÷ +55°C
System capacity notes : Possibility of installing up to 16 pairs on the same system (XP 20B D); Possibility of installing up to 4 pairs on the same system (XP 20W D)

Applications & advantages
Suitable for safety detection on automated gates and barriers. Selectable wiring options (conventional, BUS 2easy, wireless/battery transmitter) adapt to different installation constraints: BUS 2easy reduces cabling for cascaded accessories; battery transmitter avoids civil works for remote transmitters.

Technical features

• Model: XP 20 D (also available as XP 20B D and XP 20W D)
• Nominal range: 20 m
• Installation: wall-mounted
• Dimensions: 41 x 130 x 42 mm
• Horizontal adjustment: -90° to +90°
• Self-alignment: ±7° at 20 m; ±13.5° at 5 m
• Obstacle detection time: XP 20 D = 13 ms; XP 20B D = 20 ms; XP 20W D = 40 ms
• Power supply: XP 20 D = 24V DC/AC; XP 20B D = BUS 2easy two-wire 24V DC (non-polarized); XP 20W D = Rx 12–24V AC/DC, Tx 12–24V AC/DC or battery (3 V CR2, not included)
• Absorbed current: XP 20 D Rx 30 mA + Tx 20 mA; XP 20B D Rx 10 mA + Tx 10 mA; XP 20W D Rx 30 mA + Tx 40 mA (battery) / 5 mA at 24V DC
• Protection class: IP54
• Max contact capacity (XP 20 D): 60 VA / 24 W
• Operating temperature: -20°C to +55°C
• BUS 2easy supports up to 16 pairs on same system; wireless variant supports up to 4 pairs
• Swivel support with high-performance lens and quick-fit swivel lock (removable)
