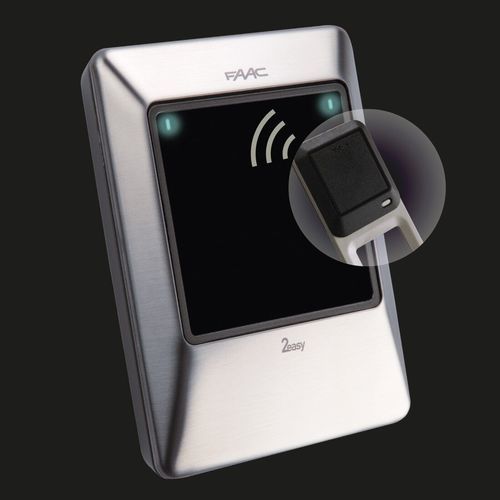

RFID card reader XTR B

for securityfor access controlindustrial

Sheer perfection All the smart features are enclosed into a strong Italian-design case. The XTR B is a high-quality reader. All contained within a depth of just 21mm. Compact design, unlimited capacity There is no limit to the number of tags that can be stored by the XTR B. Tags can be saved individually or in groups, and as master or slave versions, in order to manage duplicates. The gesture is important The XTR B can operate in single-channel or two-channel mode with impulse or hold-torun commands. Multiple features can be enabled by varying the way in which the TAG is brought towards the reader. 2easy BUS technology Installation is versatile and intuitive: connection is via two non-polarised cables. It is also possible to connect up to 14 XTR B units to one BUS 2easy board. Technical description Power supply voltage Bus 2easy, with 2 non polarised wires 24 V DC Installation type Wall or on column installation Max consumption 50 mA Max number of connectable READERS on the Bus2Easy control unit 14 (single channel) - 4 (two-channels) Protection class IP54 Dimensions (LxDxH) 100 x 21 x 72 mm TAG format 13,56 MHz Keyring
