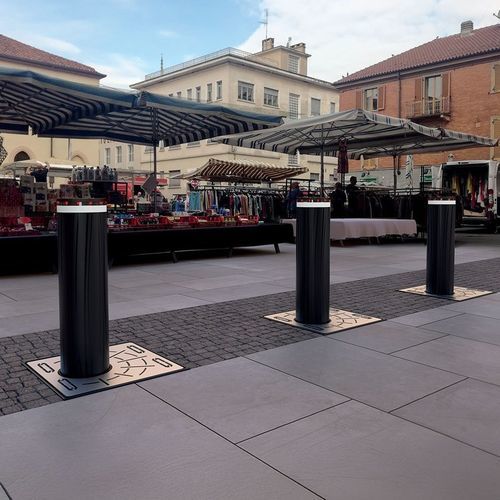

Security bollard JS SERIES

parking preventionanti-terroristremovable

Overview
The FAAC JS Series is a range of high-security bollards designed to maximise safety in areas threatened by vehicles while preserving the aesthetics of the surrounding architecture.

Features common to all JS bollards

• Performance certified according to PAS 68, IWA 14-1 and ASTM F2656 standards.
• Interchangeable protective sleeve to keep the bollard appearance like new.

JS 48 HA / JS 80 HA (Hydraulic Automatic)

• Maintenance can be carried out without removing the bollard; no lifting equipment required.
• Able to withstand impact with a 7,500 kg truck at 50 km/h (JS 48 HA) or 80 km/h (JS 80 HA). P1 penetration rating; certified operability after impact.

JS 48 R / JS 80 R (Removable)

• Removable cylinder to allow temporary access.
• Shallow mounted design: minimum excavation depth required.
• Able to withstand impact with a 7,500 kg truck at 50 km/h (JS 48 R) or 80 km/h (JS 80 R). P1 penetration rating.

JS 80 F (Fixed)

• Shallow mounted design: minimum excavation depth required.
• Able to withstand impact with a 7,500 kg truck at 80 km/h. P1 penetration rating.

Technical summary (product information)
Type of operator: Hydraulic Automatic (JS 48/80 HA) - Removable (JS 48/80 R) - Fixed (JS 80 F)
Height: 1.000 mm

Model / Item code
Model | Item code
JS 48 HA | 117001
JS 48 HA EFO | 117051
JS 48 HA INOX | 117201
JS 48 HA EFO INOX | 117251
JS 48 R | 117111
JS 48 R INOX | 117301
JS 80 HA | 117501
JS 80 HA EFO | 117551
JS 80 HA INOX | 117701
JS 80 HA EFO INOX | 117751
JS 80 R | 117601
JS 80 R INOX | 117801
JS 80 F | 117651
JS 80 F INOX | 117851

Certified resistance & test data
Crash tests passed: able to stop a 7,500 kg truck driven at 50 km/h (JS 48) and 80 km/h (JS 80). Certified operation even after impact.
Safety standards complied with: IWA 14-1, PAS 68, ASTM F2656.

New range statement
New range of high-security bollards conceived to protect sensitive buildings, squares, markets, pedestrian areas and places with high traffic, delivering non-invasive safety that protects spaces and people while respecting surrounding architectural contexts.

Technical specifications

• Type of operator: Hydraulic automatic (JS 48/80 HA) - Removable (JS 48/80 R) - Fixed (JS 80 F).
• Cylinder height from ground: 1.000 mm.
• Cylinder diameter: 275 mm.
• Release device: Yes (JS 48/80 HA).
• Max power (HA): 3.500 W (JS 48/80 HA).
• Break-in resistance: 673.000 J (JS 48 HA/R) - 1.852.000 J (JS 80 HA/R/F).
• Performance certifications: PAS 68, IWA 14-1, ASTM F2656.
• Operational after impact for certified configurations (P1 penetration rating).
